GV2ME07 - Square D TeSys GV2 Motor Starter 3 Pole 2.5A 690V Thermal Magnetic Manual Motor Protector

GV2ME07

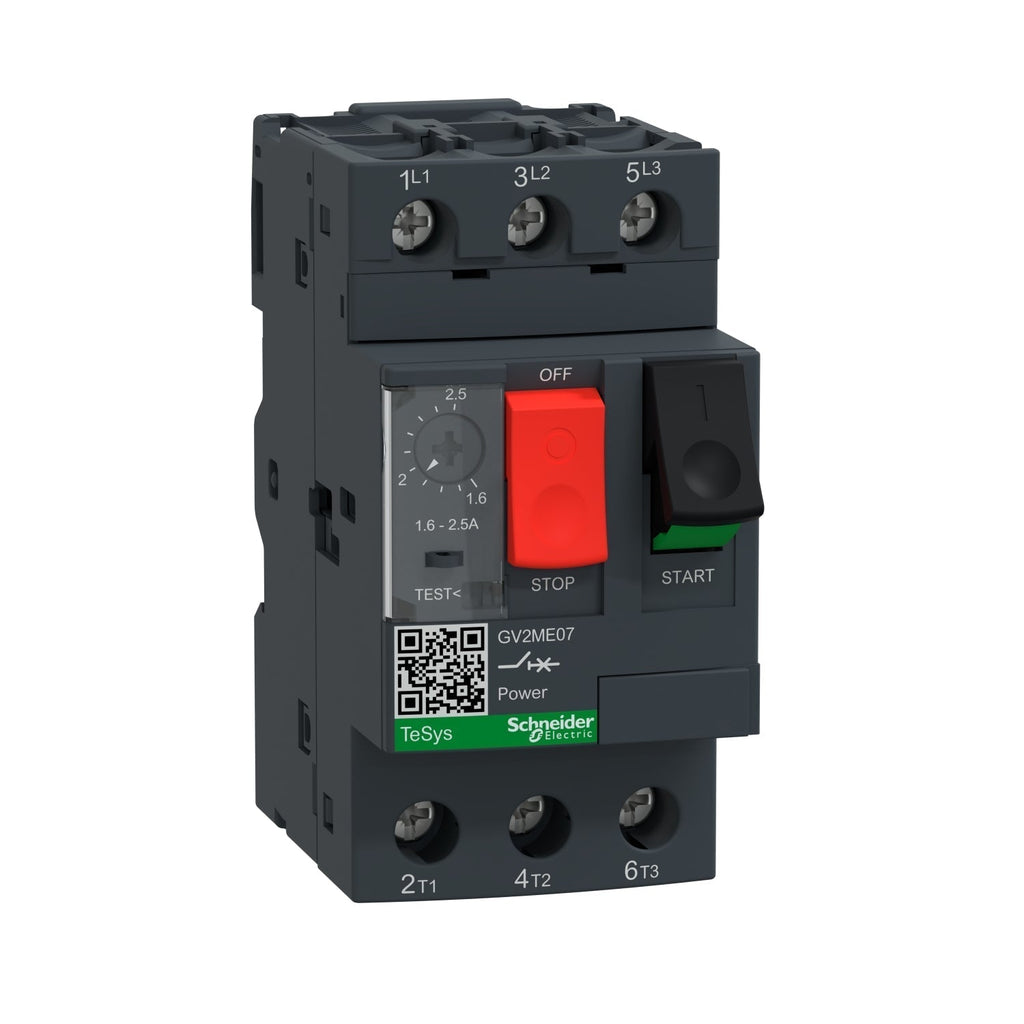

GV2ME07 is a Square D TeSys GV2 manual motor starter designed for motor control and protection with a 3-pole configuration and 2.5 amp rating at 690V.This motor starter features thermal magnetic trip unit technology, adjustable current range from 1.6 to 2.5 amps, and screw clamp terminals for secure wiring. It mounts on a standard 35mm DIN rail and provides manual isolation, motor control, and overcurrent protection in one compact unit. The device complies with IEC 60947-2 standards and offers a rated impulse withstand voltage of 6 kV. It has an IP20 degree of protection and mechanical and electrical durability rated for 100,000 cycles.

Key Specifications
• Amperage: Adjustable 1.6-2.5 A
• Voltage Rating: 690 V AC
• Poles: 3-Pole
• Mounting Type: DIN Rail (35mm)
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 100 kA at 415 V AC
• Degree of Protection: IP20
• Terminals: Screw Clamp
• Rated Impulse Withstand Voltage: 6 kV
• Mechanical Durability: 100,000 cycles
• Electrical Durability: 100,000 cycles AC-3 415 V
• Certifications: UL, CSA, IEC 60947-2 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2ME07
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 2.5
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 1/2 hp HP @ 3 Phase - 240V 1/2 hp HP @ 3 Phase - 480V 1 hp
• Nema Rating : 00

Product Data

• UPC : 785901211945
• GTIN : 03389110343076
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
• Weight : 0.567
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC 60947-2; EN/IEC 60947-4-1
