GV2ME01 - Square D TeSys GV2 Manual Motor Starter 3 Pole 0.1-0.16A 600V Pushbutton IP20

GV2ME01

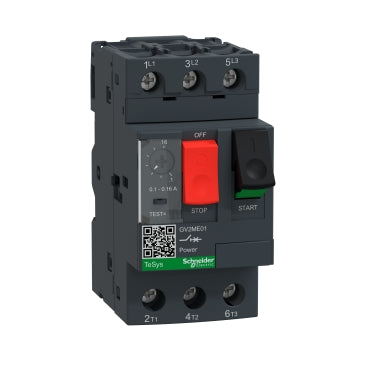

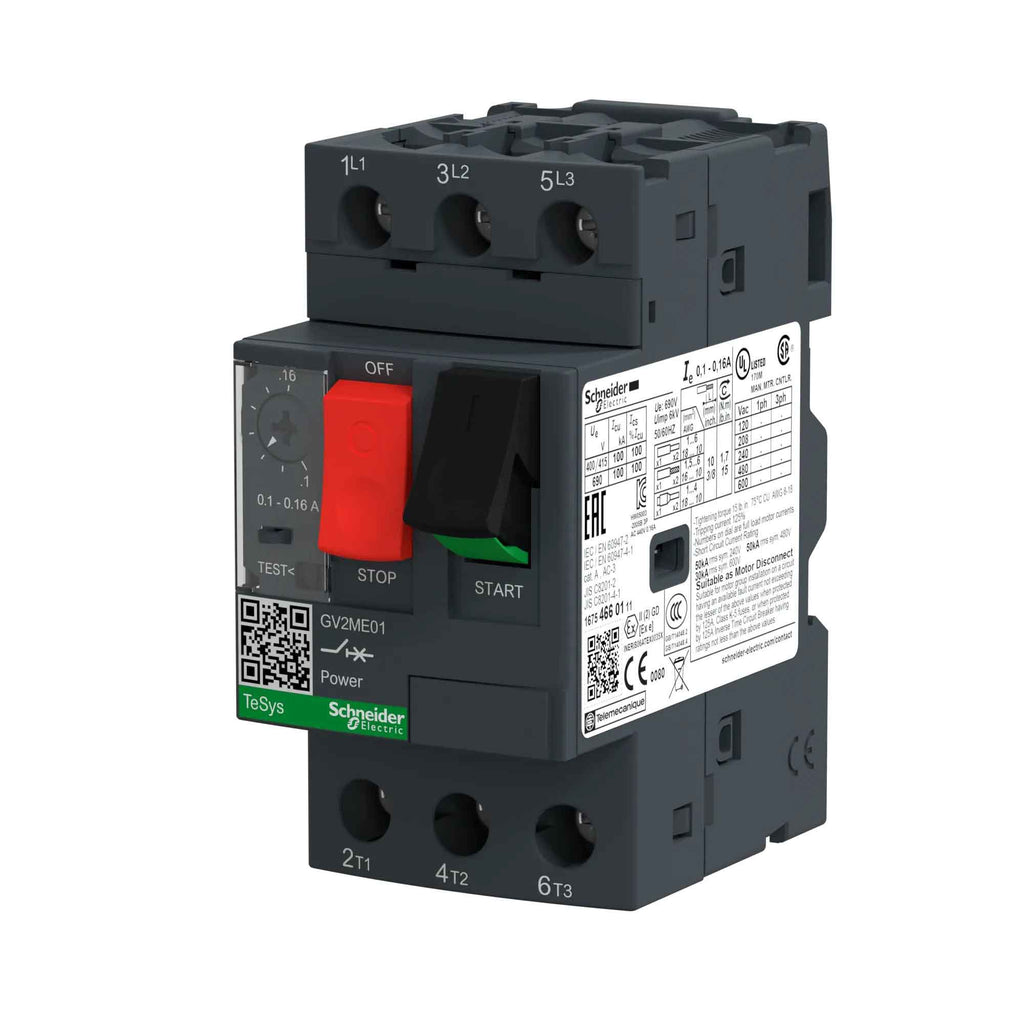

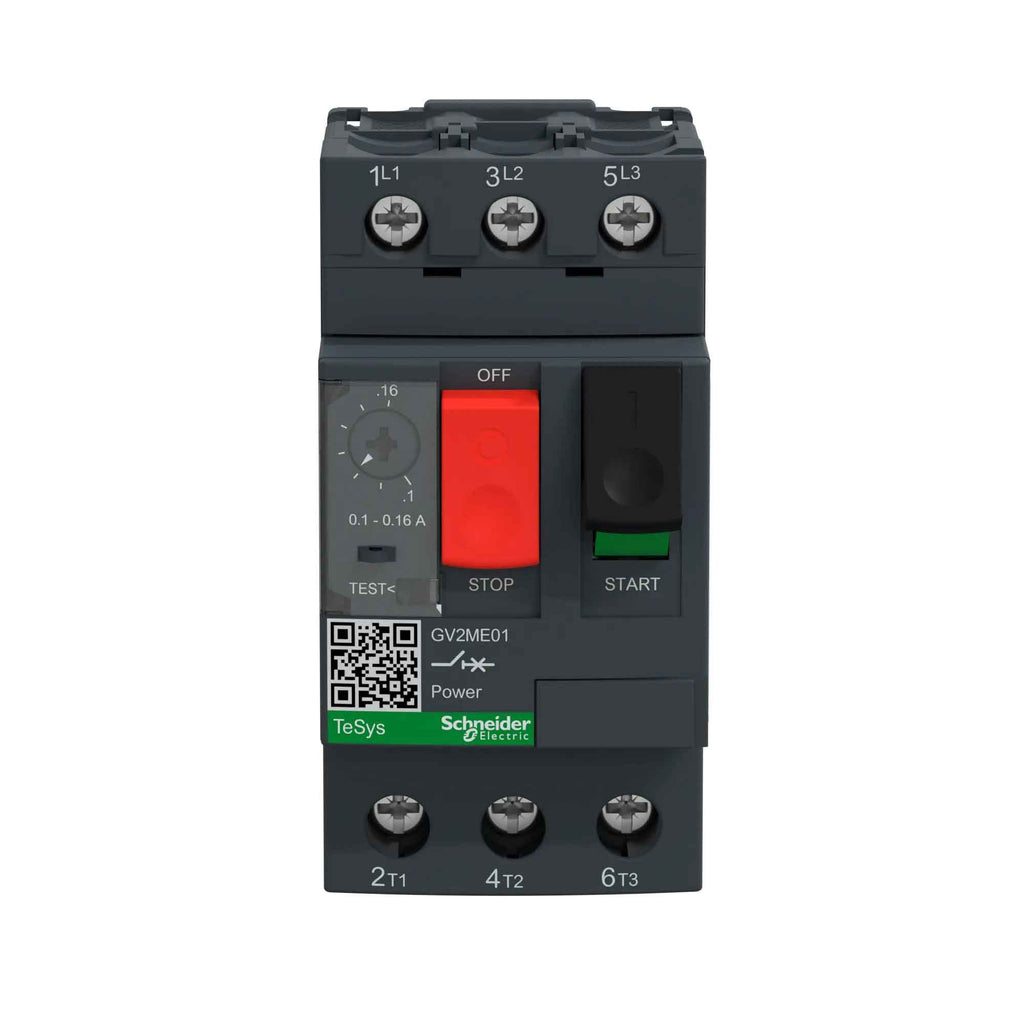

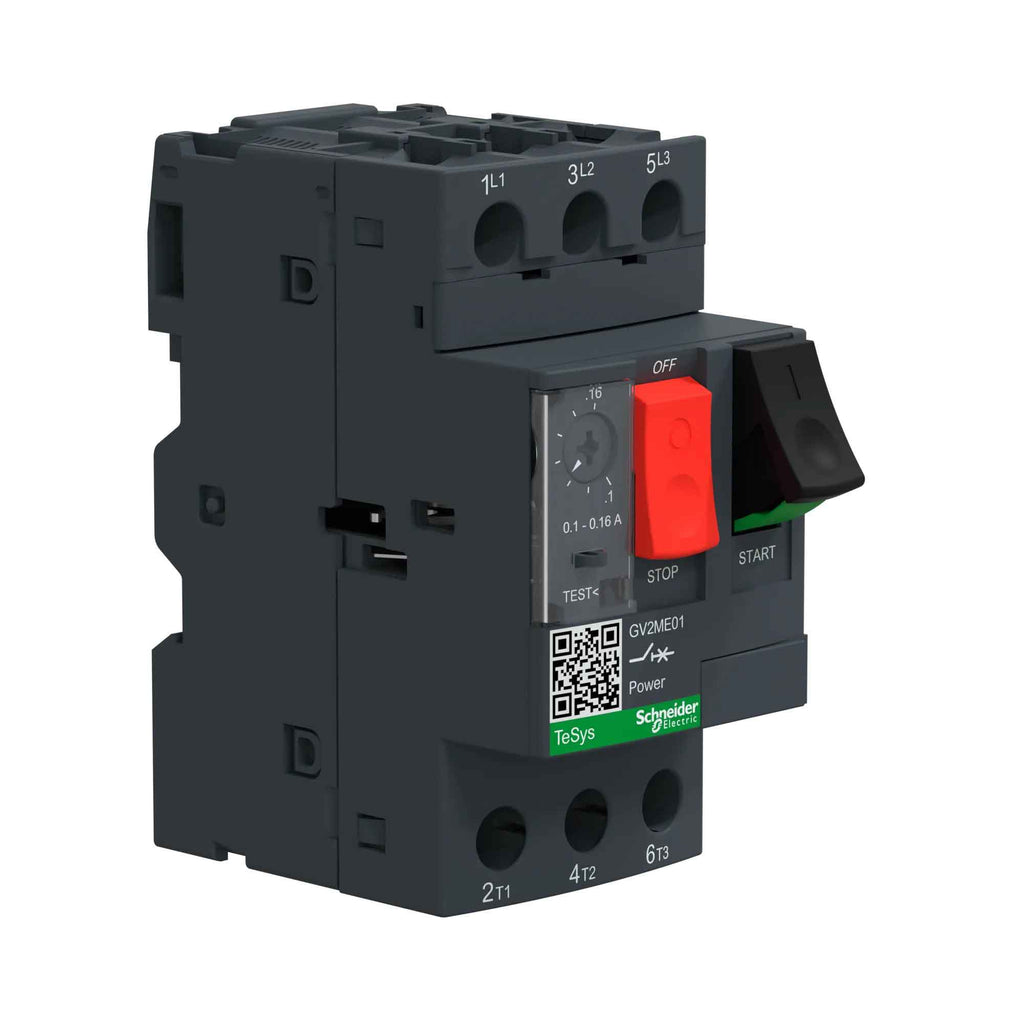

GV2ME01 is a Square D TeSys GV2 manual motor starter designed for 3-phase motor control applications.This manual starter features a 3-pole configuration with an adjustable thermal magnetic trip unit rated for 0.1 to 0.16 amps and a maximum voltage of 600V AC. It includes pushbutton control and screw clamp terminals, housed in an IP20/IK04 enclosure. The device provides reliable motor protection with a Class 10 ambient compensated bimetal overload relay and supports 50/60 Hz operation. Dimensions are approximately 3.5 in H x 1.77 in W x 3.09 in D.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Series/Frame: TeSys GV2
• Poles: 3
• Amperage Range: 0.1 to 0.16 A
• Voltage Rating: 600 V AC
• Control Type: Pushbutton
• Trip Unit: Thermal magnetic, Class 10 bimetallic overload
• Mounting Type: Panel mount
• Enclosure Rating: IP20 / IK04
• Frequency: 50/60 Hz
• Connection Type: Screw clamp terminals
• Operating Temperature: -20 to 60 °C
• Certifications: ATEX, BV, CCC compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GV2ME01
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 1.5
• Phase : 3
• Poles : 3
• Nema Rating : 00



Product Data

• UPC : 785901211884
• GTIN : 03389110342925
• Country of Origin : Thailand

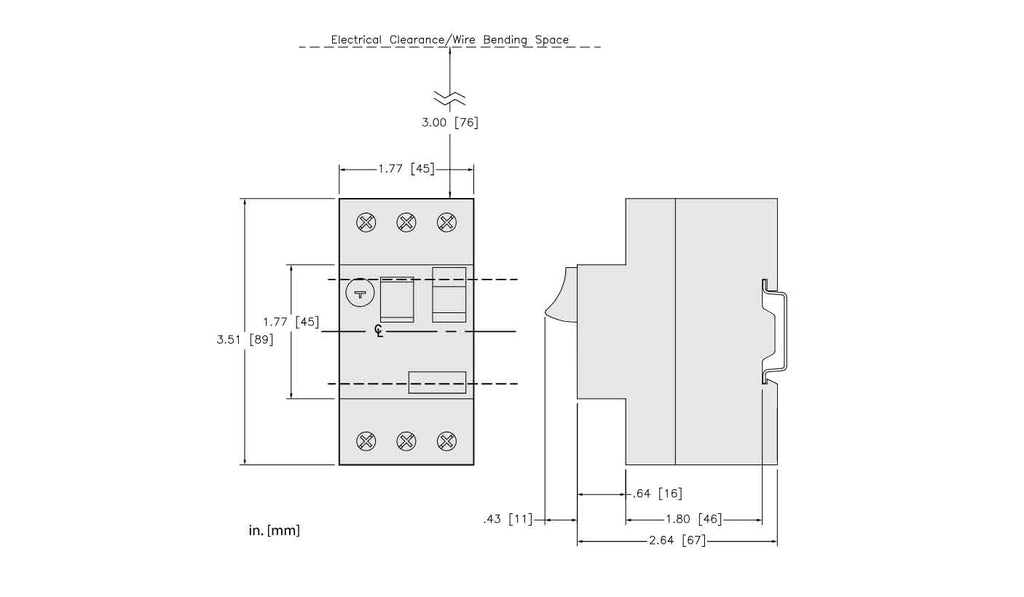

• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
• Weight : 0.503
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
