Product Info
- Manufacturer:Eaton
- Sub-Category:Conduit bodies, covers and outlet boxes
Description
GUAN14

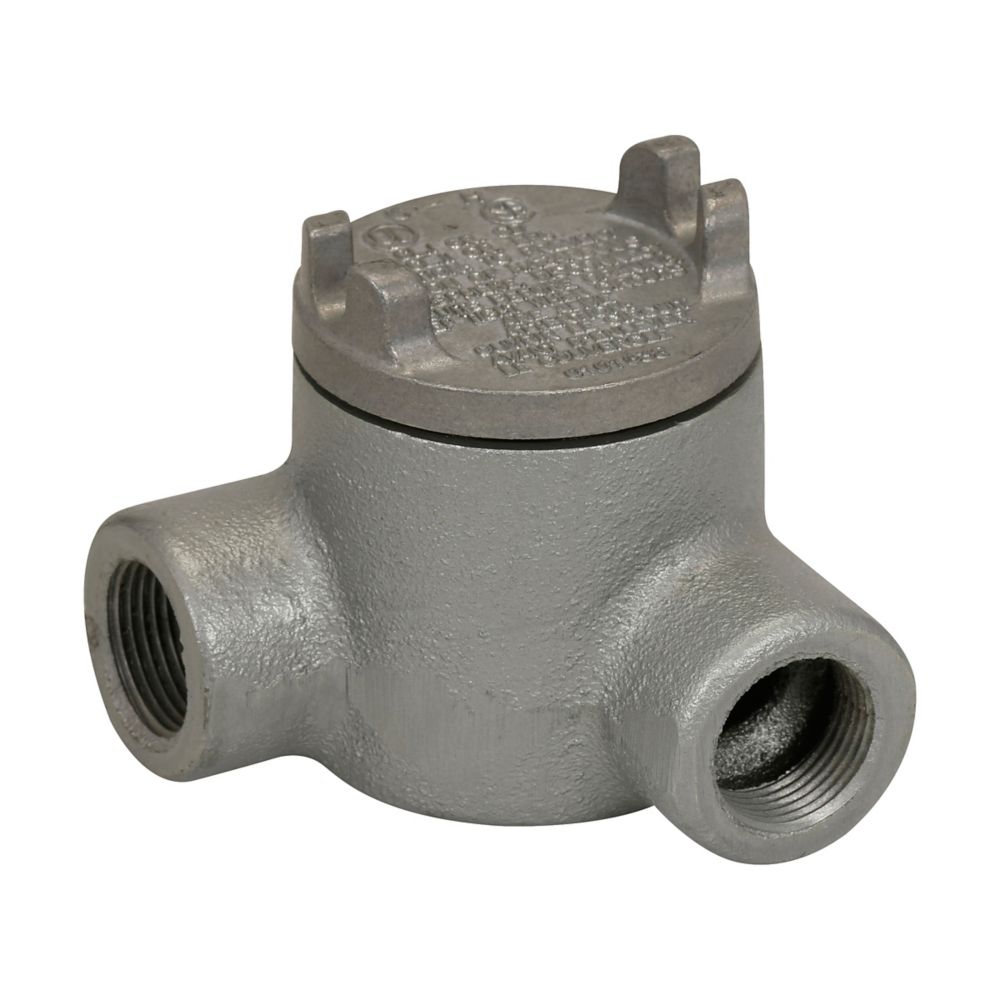

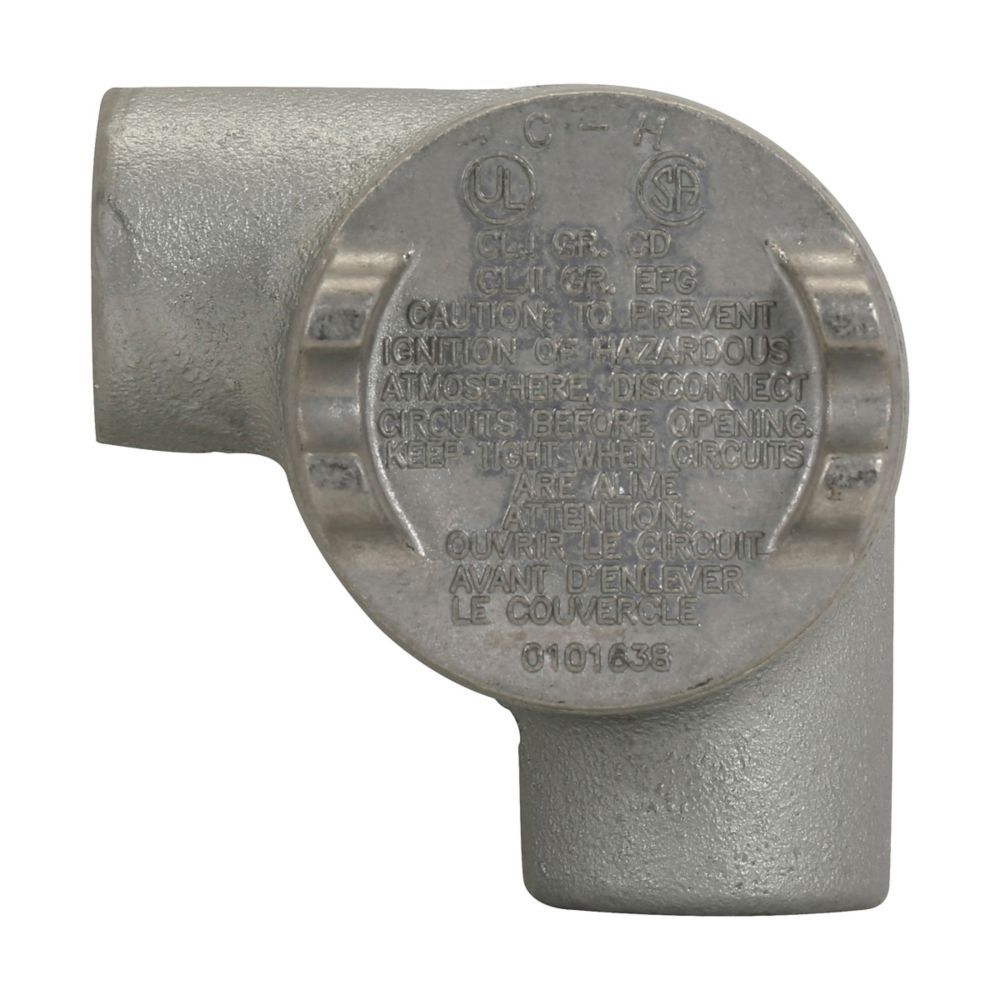

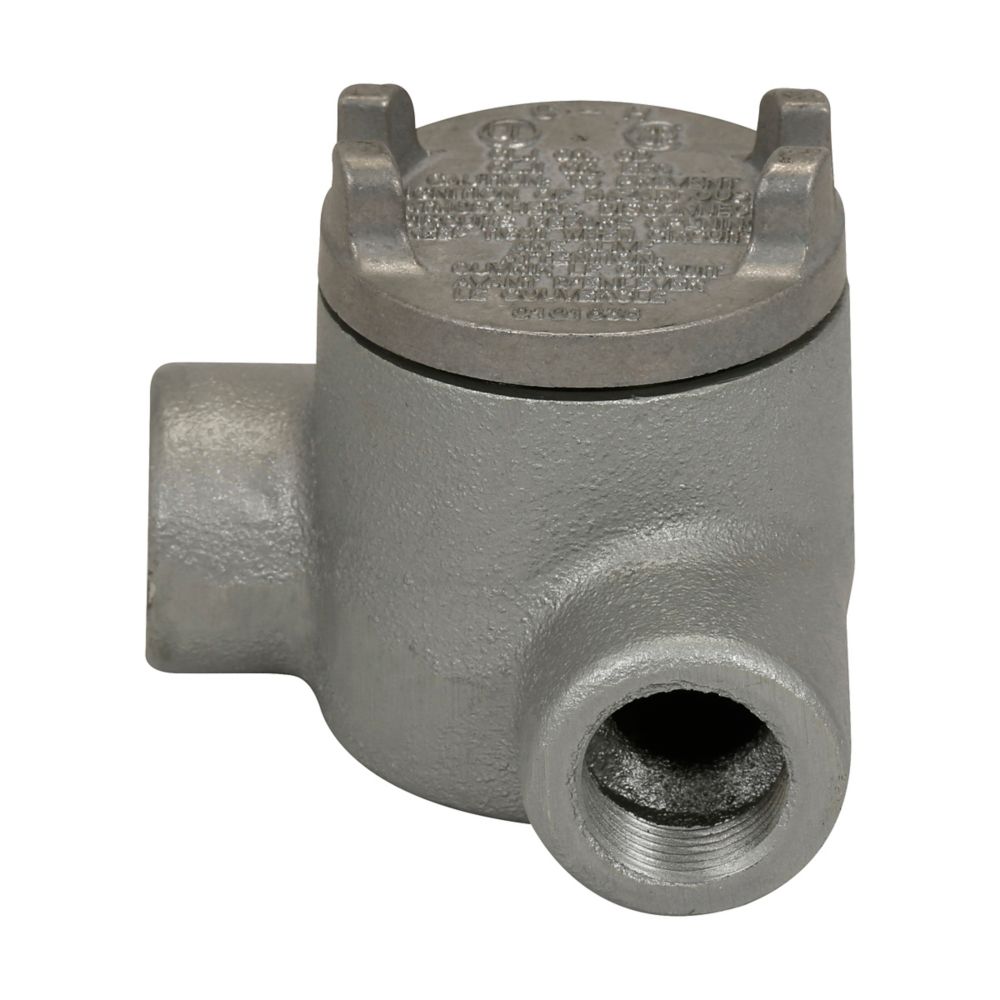

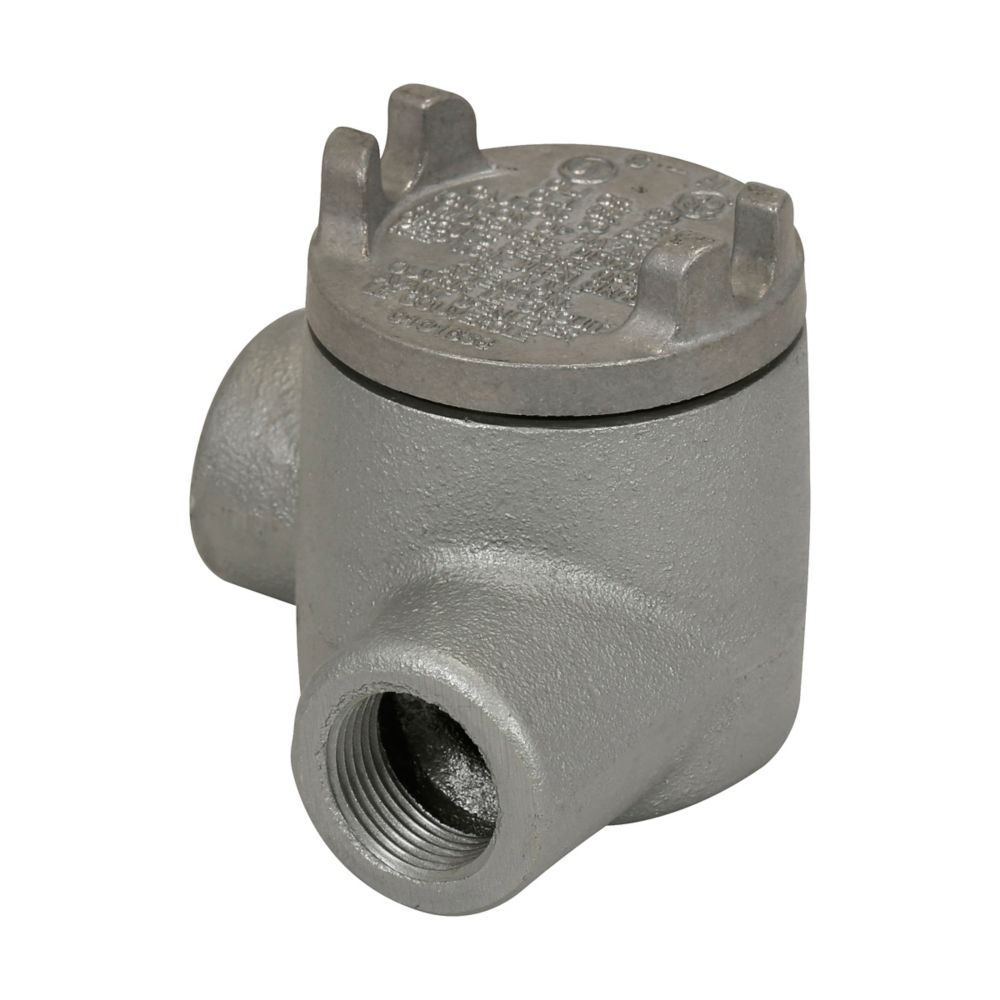

GUAN14 is a Crouse-Hinds Condulet conduit outlet box made from durable Feraloy iron alloy with a 2 inch cover opening and N shape design.This conduit outlet box features a 1/2 inch threaded hub size suitable for rigid conduit, electro-galvanized and aluminum acrylic painted finish for corrosion resistance, and a neoprene O-ring to meet NEMA 4 requirements. It includes cast ears on the cover for easy removal and tightening, an internal green ground screw, and is UL 1203 and CSA C22.2 certified for hazardous locations.
- Key Specifications
- Material: Feraloy iron alloy
- Shape: N
- Hub Size: 1/2 inch threaded
- Cover Opening Diameter: 2 inches
- Finish: Electro-galvanized and aluminum acrylic painted
- Mounting Type: Pad
- Capacity: 5 cubic inches
- Certifications: UL 1203, CSA C22.2
- Neoprene O-ring for NEMA 4 compliance
- Internal green ground screw
- Cast ears on cover for easy handling
Specifications
- Part Number: GUAN14
- Manufacturer : Eaton
- Brand : Crouse-Hinds
- Category : Conduit & Fittings
- Item Subcategory : Conduit bodies, covers and outlet boxes
- Section : Condulet GUA and GUR Series Explosionproof Conduit Outlet Boxes
- Family : GUA
- Nema Rating : 3 4 7 9
- Material : Feraloy iron alloy
- NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
- Trade size : 1/2"
Product Data
- UPC : 782274466200
- GTIN : 00782274466200
- Dimensions : 3.38 in x 3.38 in x 2.13 in (Length/Depth x Height x Width)
- Weight : 1.75
