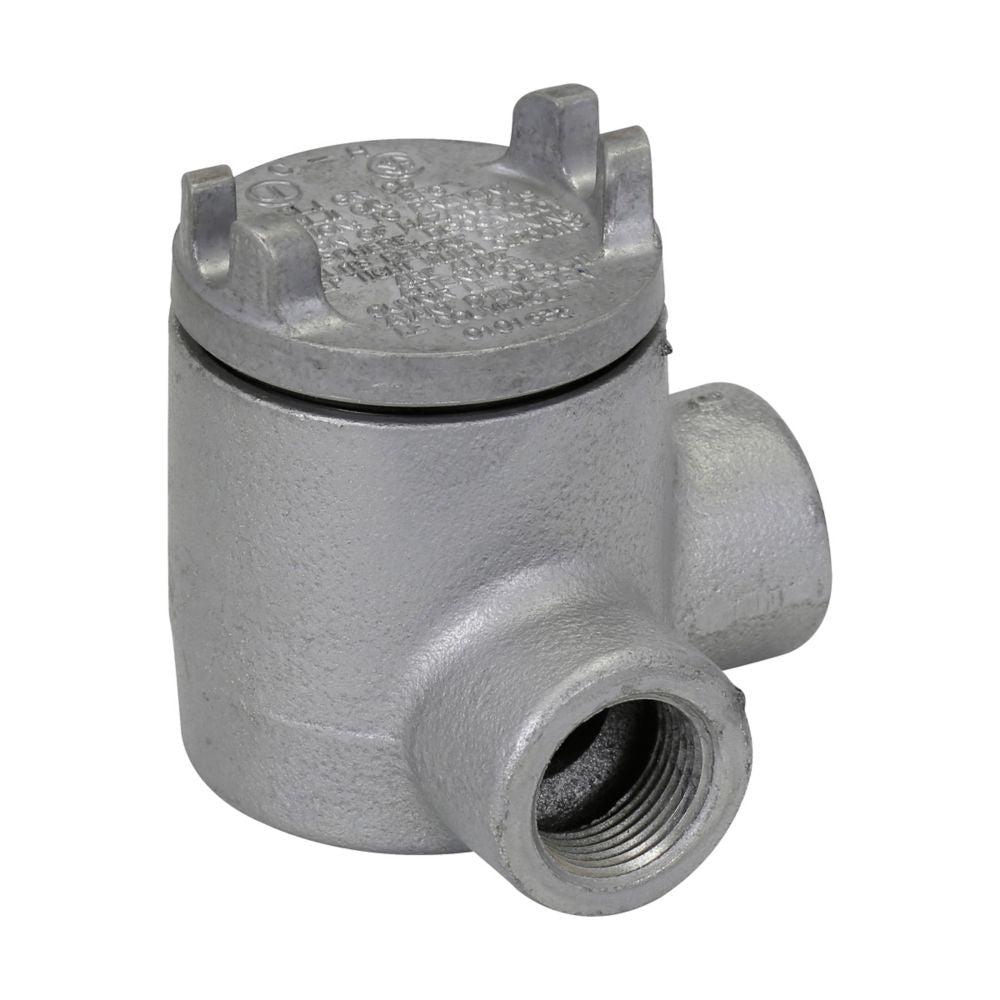

GUAL24 - Crouse-Hinds Explosionproof Conduit Outlet Box 3/4 Inch Hub, 2 Inch Cover Opening, Feraloy Iron Alloy

GUAL24

GUAL24 is an Eaton Crouse-Hinds explosionproof conduit outlet box featuring a 3/4 inch hub and 2 inch cover opening for hazardous locations.This conduit outlet box is constructed from durable Feraloy iron alloy with an aluminum acrylic painted and electro-galvanized finish. It has an L shape design, threaded cover openings, and a neoprene O-ring to meet NEMA 4 requirements. The box includes cast ears for easy cover removal, an internal green ground screw, four mounting pads, and smooth integral hub bushings to protect conductor insulation. It is suitable for use with threaded rigid conduit and rated for Class I, Division 1 & 2, Class II, Division 1 & 2, and Class III hazardous locations with NEMA 3, 4, 7, and 9 ratings.

Key Specifications
• Material: Feraloy iron alloy
• Trade Size: 3/4 inch hub
• Cover Opening Diameter: 2 inches
• Shape: L
• Finish: Aluminum acrylic painted/electro-galvanized
• Mounting: Four standard mounting pads
• Protection: NEMA 3, 4, 7, 9
• Approvals: NEC/CEC hazardous location ratings
• Threaded cover openings with neoprene O-ring
• Internal green ground screw
• Suitable for threaded rigid conduit
• Weight: Approximately 1.74 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GUAL24
• Manufacturer : Eaton
• Brand : Crouse-Hinds
• Category : Conduit & Fittings
• Item Subcategory : Conduit bodies, covers and outlet boxes
• Section : Condulet GUA and GUR Series Explosionproof Conduit Outlet Boxes
• Family : GUA
• Nema Rating : 3 4 7 9
• Material : Feraloy iron alloy
• NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• Trade size : 3/4"

Product Data

• UPC : 782274464909
• GTIN : 782274464909
• Dimensions : 3.38 in x 3.38 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 1.74
