GUAC26 DIN16 - Eaton Conduit & Fittings Outlet Box

GUAC26 DIN16

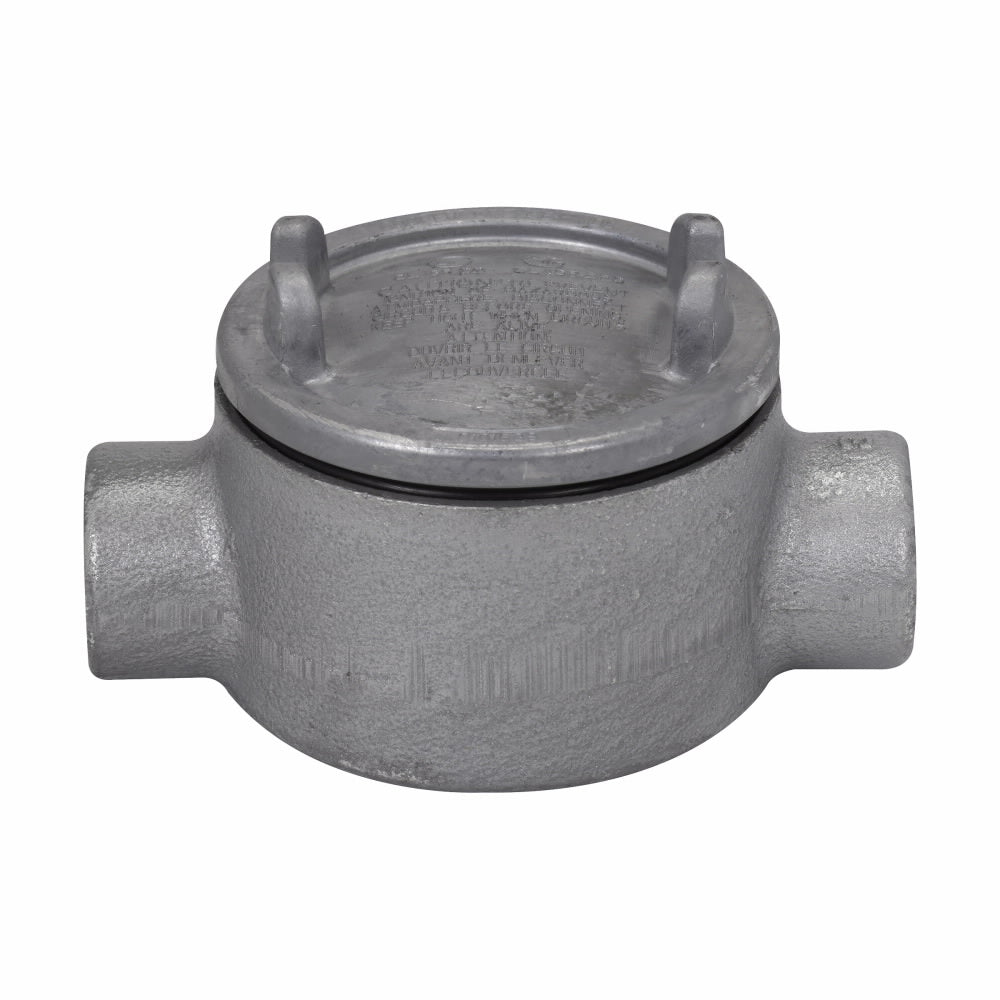

GUAC26 DIN16 is an Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover designed for hazardous and classified locations. GUAC26 DIN16 features a C-shape configuration, 3/4" trade size, and 3" cover opening diameter, constructed from Feraloy iron alloy with DIN rail mounting and 6 terminal blocks. This explosionproof conduit outlet box is certified for Class I, Division 1, Groups B, C, D and Class II, Division 1, Groups E, F, G, and complies with NEC/CEC standards. The unit is rated for 30A nominal at 300V nominal with wire gauge capacity of 24AWG to 10AWG. Key Specifications

• Part Number: GUAC26 DIN16
• Manufacturer: Eaton
• Shape: C
• Trade Size: 3/4"
• Cover Opening Diameter: 3"
• Material: Feraloy iron alloy
• Mounting: DIN rail mounted with 6 terminal blocks
• Amperage: 30 A
• Voltage: 300 V
• Wire Gauge: 24AWG - 10AWG
• NEMA Rating: 3, 4, 7, 9
• NEC Hazardous Rating: Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, Class III
• Product Dimensions: 5.25 in L x 3.5 in H x 2 in W
• Product Weight: 3.25 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GUAC26 DIN16
• Manufacturer : Eaton
• Brand : Eaton
• Category : Conduit & Fittings
• Item Subcategory : Conduit bodies, covers and outlet boxes
• Section : Condulet GUA and GUR Series Explosionproof Conduit Outlet Boxes
• Voltage : 300 V
• Amperage : 30 A
• Diameter : 3"
• Class Rating : Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, Class III
• Wire : 24AWG - 10AWG
• Configuration : C shape
• Nema Rating : 3, 4, 7, 9
• Circuit Breaker Mounting Style : DIN rail mounted, 6 terminal blocks
• Metal Type : Feraloy iron alloy
• Shipping Dimensions : 5.25 in L x 3.5 in H x 2 in W
• Item QTY : 3.25 lb
• Material : Feraloy iron alloy
• NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• Trade size : 3/4"
• Special features : DIN rail mounted, 6 terminal blocks

Product Data

• UPC : 662276101517
• Dimensions : 5.25 in x 3.5 in x 2 in (Length/Depth x Height x Width)
• Weight : 2.33 lb
