Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GSC3

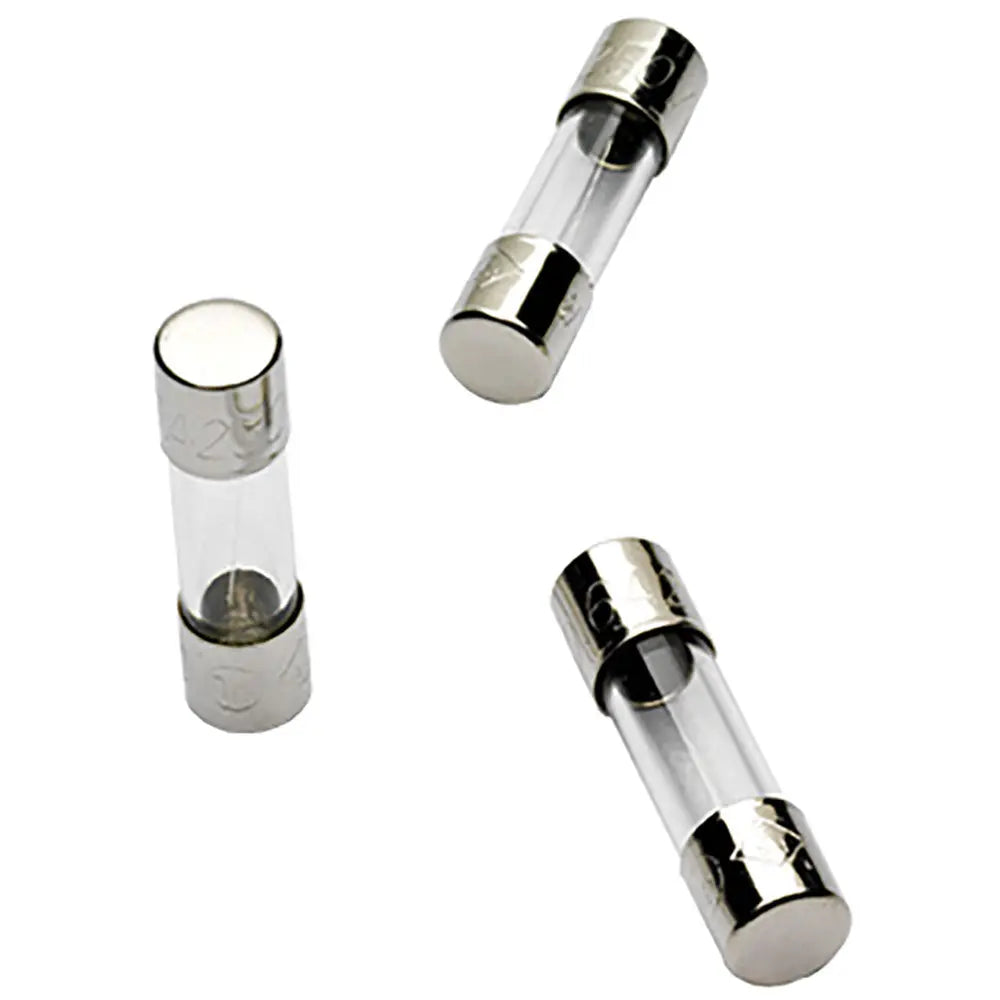

GSC3 is a 3A, 250VAC time delay glass fuse designed for supplemental circuit protection in electronic and industrial applications. This fuse features a 5mm x 20mm cartridge size and is constructed with a glass body and ferrule terminals for reliable performance.
- Amperage: 3A
- Voltage Rating: 250VAC
- Mounting Type: Cartridge (5mm x 20mm)
- Interrupt Rating: 100A@250V
- Series: GSC
- Speed: Time Delay (Slow Blow)
- Material: Glass
- Terminal Type: Ferrule
- Fuse Class: Supplemental
- Physical Size: 5mm x 20mm
- Application: Electronic and Industrial Circuits
- Certifications: cURus Recognized
Specifications
- Part Number: GSC3
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GSC
- Voltage : 250
- Amperage : 3
- AIC rating : 100A@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
- Velocity : Time Delay
Product Data
- UPC : 78200176580
- GTIN : 00782001765804
- Country of Origin : China
- Dimensions : x 20 mm x
- Weight : 0.005
- Certification : Ul Listed Csa Certified
