Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GSC1

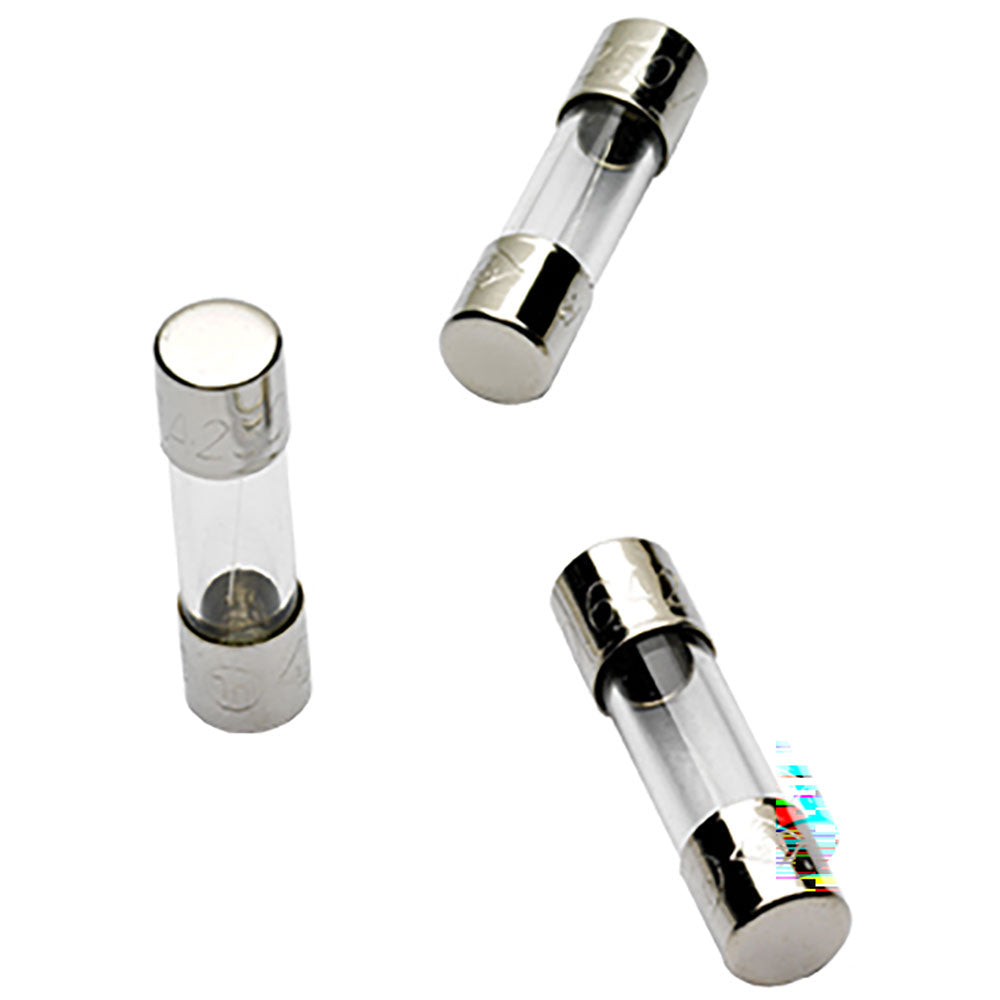

GSC1 is a Eaton time delay miniature fuse rated for 1 amp and 250 volts AC with a 5 mm by 20 mm cylindrical glass body.GSC1 fuse features a time delay characteristic suitable for protecting electronic circuits and supplemental fuse applications. It has a high interrupt rating of 100,000 amps at 250 volts AC, ensuring reliable circuit protection. The fuse is constructed with glass and ceramic materials and uses ferrule terminals for mounting.
- Amperage Rating: 1 Amp
- Voltage Rating: 250 Volt AC
- Body Size: 5 mm diameter x 20 mm length
- Fuse Type: Time Delay Miniature
- Interrupt Rating: 100,000 AIC at 250 VAC
- Body Material: Glass and Ceramic
- Terminal Type: Ferrule
- Application: Electronic circuits, supplemental protection
- Mounting Type: Ferrule terminals
- Certifications: Industry standard for miniature fuses
Specifications
- Part Number: GSC1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GSC
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
- Velocity : Time Delay
Product Data
- UPC : 78200176575
- GTIN : 00782001765750
- Country of Origin : China
- Dimensions : x 0.79 in x
- Weight : 5.19
- Certification : Ul Listed Csa Certified
