Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GSC1/2

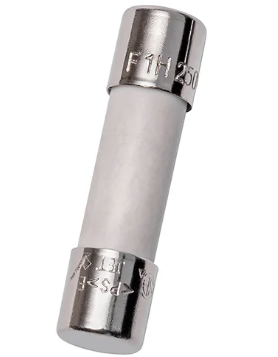

GSC1/2 is a 0.5 ampere, 600 VAC Class G time delay miniature fuse from Eaton designed for reliable circuit protection.GSC1/2 features a cylindrical body with a 5 mm diameter and 20 mm length, providing time-delay protection suitable for electronic circuits and supplemental fuse applications. It has a high interrupt rating of 100 kA at 600 VAC and 10 kA at 170 VDC, ensuring safe interruption of fault currents. This fuse is single-pole and designed for use in Eaton Bussmann series SC fuse blocks.
- Amperage Rating: 0.5 A
- Voltage Rating: 600 VAC, 170 VDC
- Interrupt Rating: 100 kA at 600 VAC, 10 kA at 170 VDC
- Fuse Class: Class G
- Fuse Type: Time Delay
- Body Style: Cylindrical
- Body Size: 5 mm diameter x 20 mm length
- Poles: 1
- Mounting Type: Cartridge fuse holder
- Series/Frame: Eaton Bussmann SC Series
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: GSC1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GSC
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
- Velocity : Time Delay
Product Data
- UPC : 78200176571
- GTIN : 00782001765712
- Country of Origin : China
- Dimensions : x 20 mm x
- Weight : 0.005
