Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GSB8

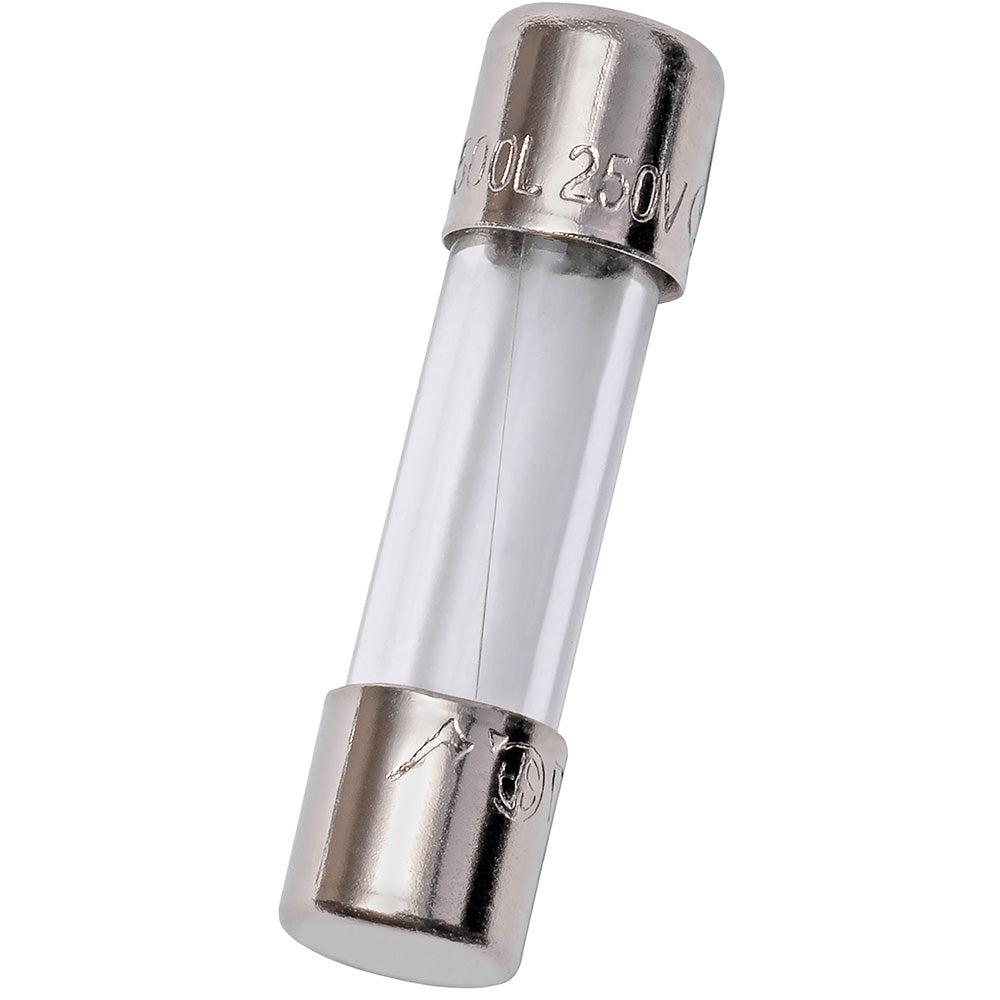

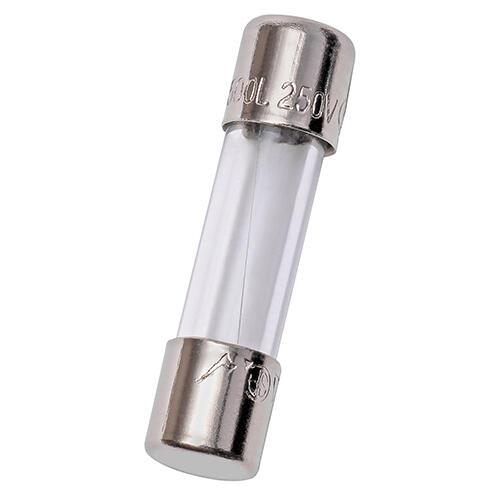

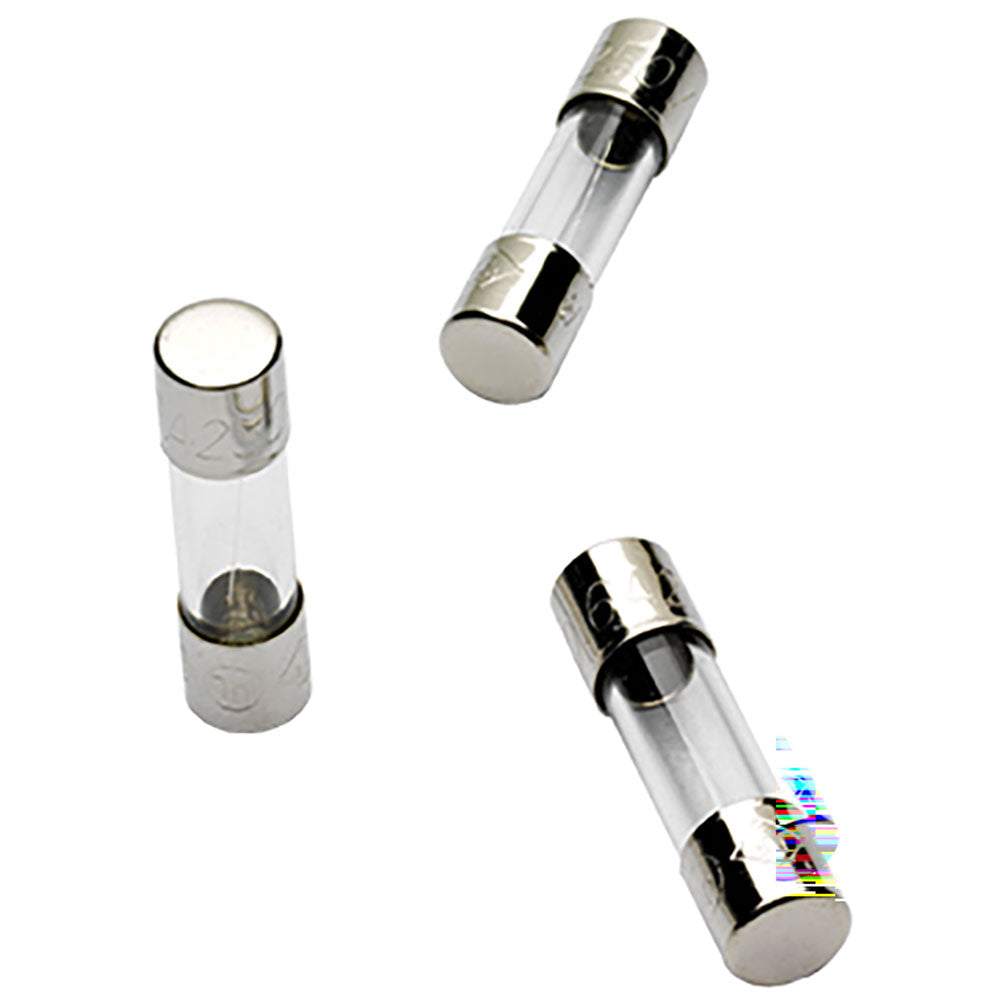

GSB8 is a fast-acting miniature glass fuse from Mersen rated for 8 amps and 250 volts AC in a 5x20mm size.GSB8 features a fast blow response time suitable for protecting sensitive electronic circuits. It has a compact 5mm by 20mm glass cartridge design with an interrupting rating of 80 amps. This fuse is UL and CSA approved, RoHS compliant, and designed for supplemental circuit protection in a variety of applications.
- Key Specifications
- Amperage: 8 Amps
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast-Acting (Fast Blow)
- Size: 5mm x 20mm (Miniature Glass Tube)
- Interrupting Rating: 80 Amps
- Mounting Type: Cartridge Fuse
- Certifications: UL, CSA, RoHS Compliant
- Manufacturer: Mersen
Specifications
- Part Number: GSB8
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GSB Series
- Type : GSB
- Voltage : 250
- Amperage : 8
- AIC rating : 80A@250V
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 078200128764
- GTIN : 00782001287641
- Country of Origin : China
- Dimensions : x 0.79 in x
- Weight : 0.005
- Certification : Csa Certified
