Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GSB1-6/10

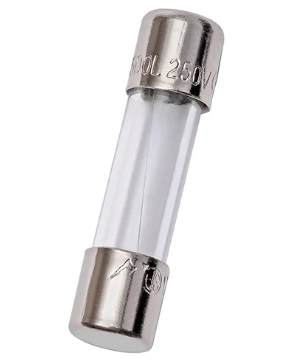

GSB1-6/10 is a Mersen fast-acting glass fuse rated for 1.6 amps and 250 volts AC, designed for electronic circuit protection.GSB1-6/10 features a 5 mm x 20 mm glass body with a supplemental fuse class and an interrupt rating of 35 amps at 250 VAC. It is UL and CSA recognized, SEMKO and VDE approved, and compliant with IEC-127-2 standards. This fuse is intended for mounting in fuse holders or clips and provides reliable fast-acting protection for sensitive electronic components.
- Key Specifications
- Current Rating: 1.6 Amps
- Voltage Rating: 250 Volts AC
- Fuse Size: 5 mm x 20 mm
- Fuse Class: Supplemental
- Speed: Fast-Acting
- Interrupt Rating: 35 Amps at 250 VAC
- Mounting Style: Holder / Clip
- Body Material: Glass
- Certifications: UL, CSA, SEMKO, VDE
- Compliance: IEC-127-2, RoHS, REACH
Specifications
- Part Number: GSB1-6/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GSB Series
- Type : GSB
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250V
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 78200176485
- GTIN : 00782001764852
- Country of Origin : China
- Dimensions : x 0.79 in x
- Weight : 0.005
