Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

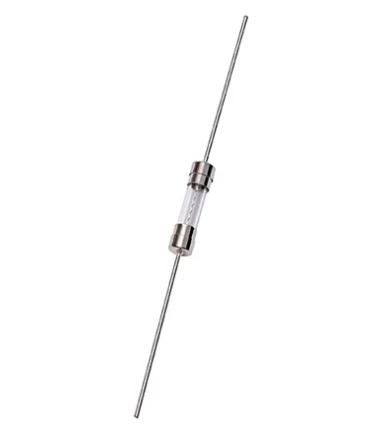

GSB1/10
GSB1/10 is a Mersen fast acting glass body fuse rated at 1/10 amp and 250 volts AC designed for low voltage circuit protection.GSB1/10 features a compact 5mm x 20mm size, a 35 amp interrupting rating at 250VAC, and complies with IEC-127-2 standards. It is UL listed, CSA recognized, and approved by SEMKO and VDE, ensuring reliable performance in electronic applications.
- Amperage: 1/10 Amp
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast Acting
- Body Material: Glass
- Physical Size: 5mm x 20mm
- Interrupt Rating: 35 AIC @ 250VAC
- Standards: IEC-127-2 Sheet 2
- Certifications: UL Listed, CSA Recognized, SEMKO, VDE Approved
- Poles: Single (1 Barrel)
- Mounting Type: Ferrule
Specifications
- Part Number: GSB1/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GSB Series
- Type : GSB
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250V
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 782001764739
- Weight : 12
