Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GSA25

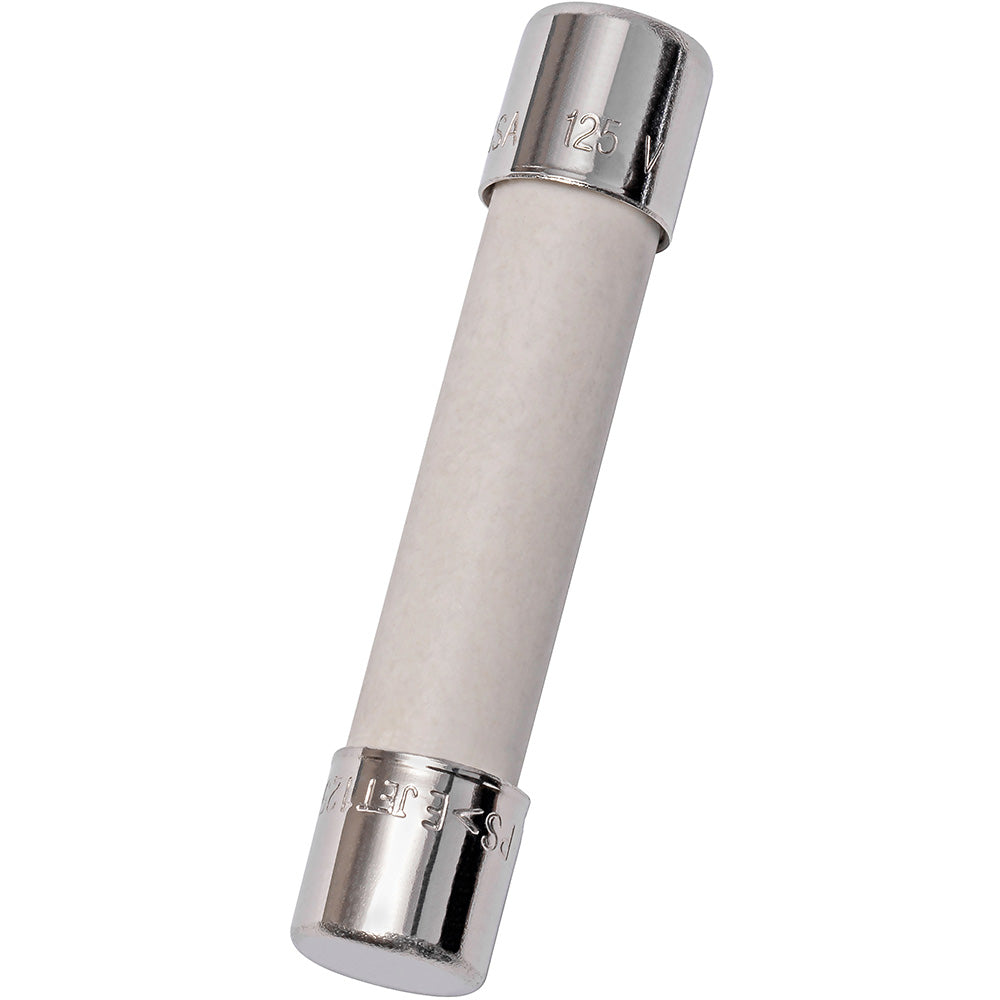

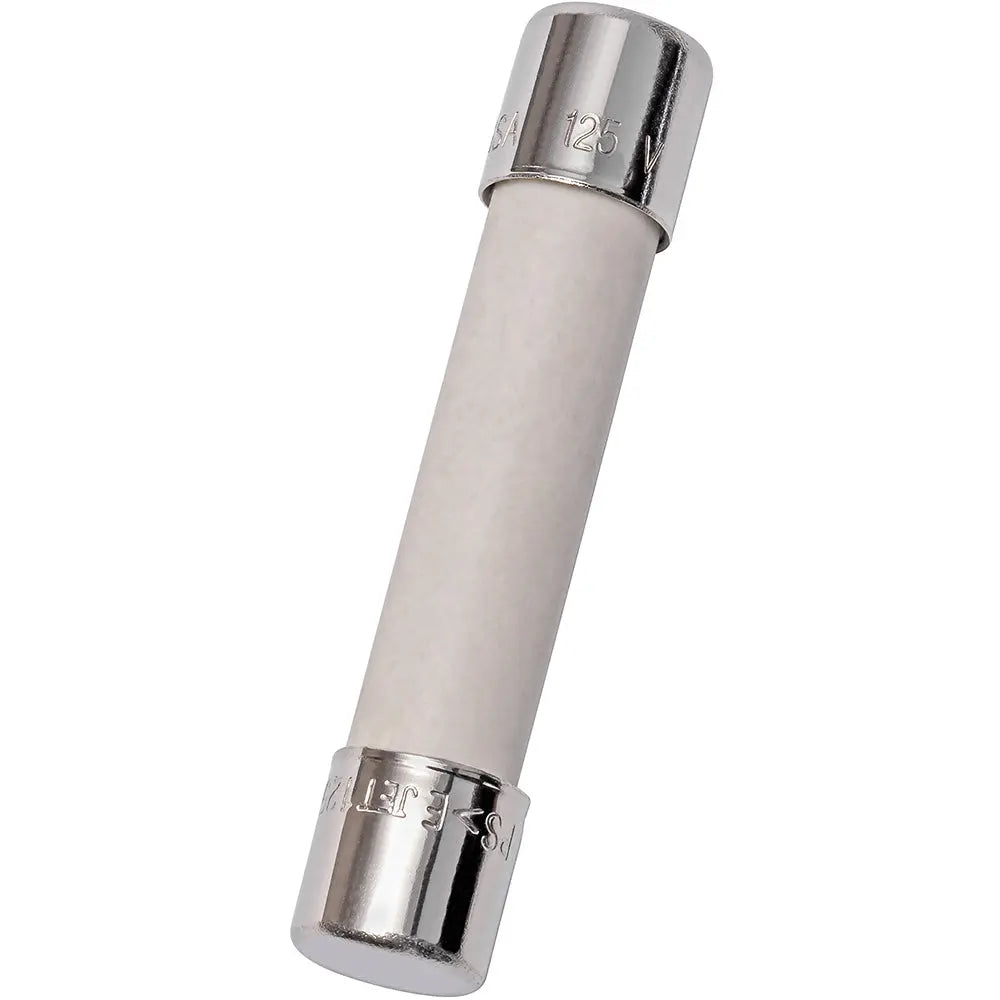

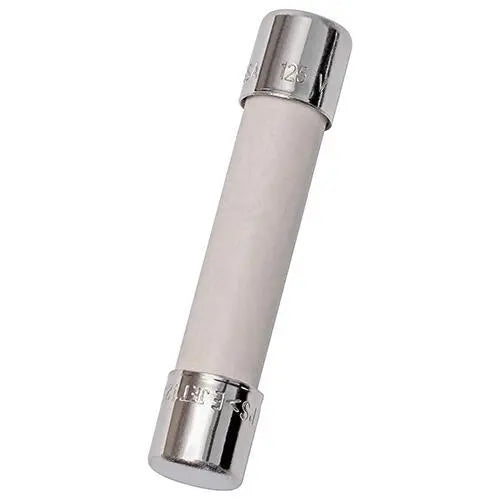

GSA25 is a 25 amp, 125 volt time delay miniature ceramic fuse from Ferraz Shawmut designed for reliable circuit protection.This fuse features a cylindrical ceramic body with a physical size of 1/4 inch by 1-1/4 inch, providing time delay characteristics suitable for electronic and electrical applications requiring temporary overload tolerance. It has an interrupting rating of 400 amperes at 125 VAC, ensuring safe interruption of fault currents. The GSA25 fuse is part of the GSA series and is UL recognized for quality and safety.
- Amperage: 25 A
- Voltage Rating: 125 VAC
- Fuse Type: Time Delay
- Body Type: Ceramic, Cylindrical
- Physical Size: 1/4" x 1-1/4" (6.3 x 32 mm)
- Interrupt Rating: 400 AIC at 125 VAC
- Series: GSA
- Mounting Type: Inline Fuse Holder Compatible
- Certifications: UL Recognized
Specifications
- Part Number: GSA25
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GSA Series
- Type : GSA Series
- Voltage : 125
- Amperage : 25
- AIC rating : 400A@125Vac
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
- Velocity : Time-Delay
Product Data
- UPC : 782001230944
- GTIN : 00782001230944
- Country of Origin : China
- Dimensions : 59 mm x 18 mm x 18 mm (Length/Depth x Height x Width)
- Weight : 0.05635
- Certification : Csa Certified
