Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GSA2

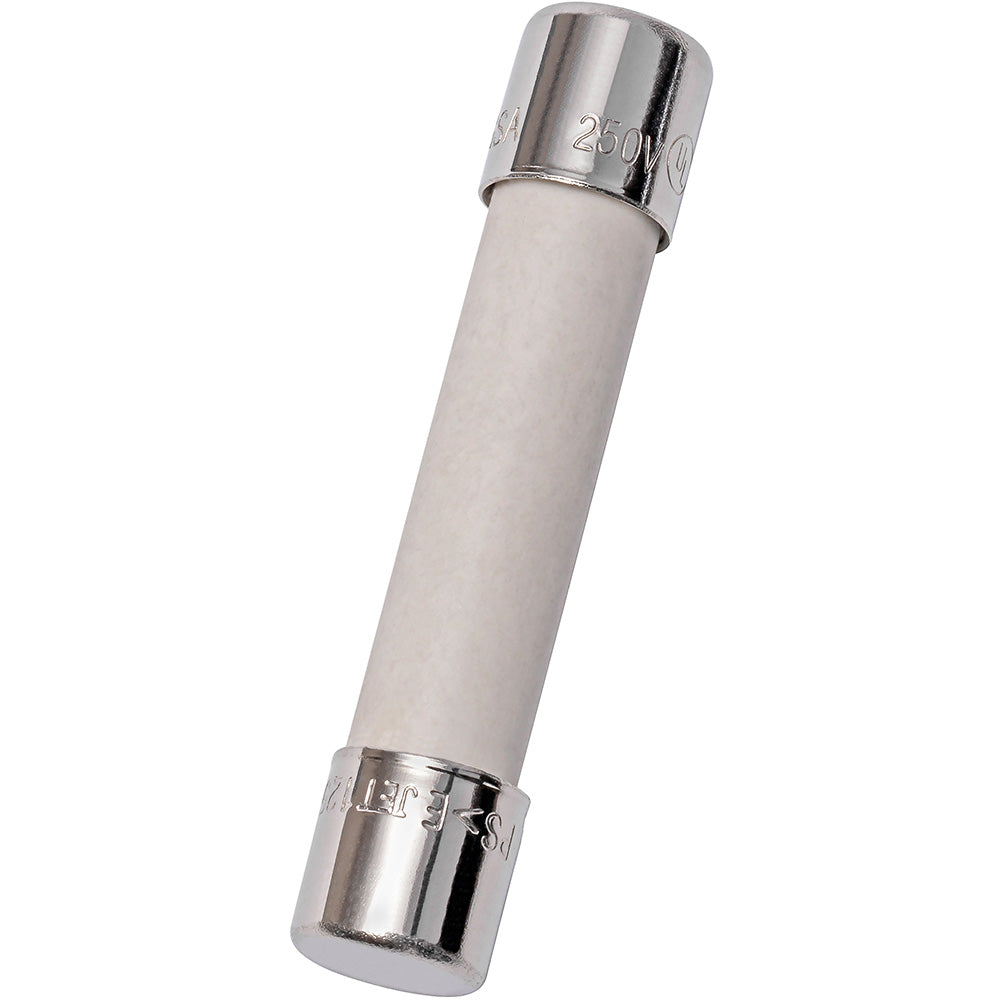

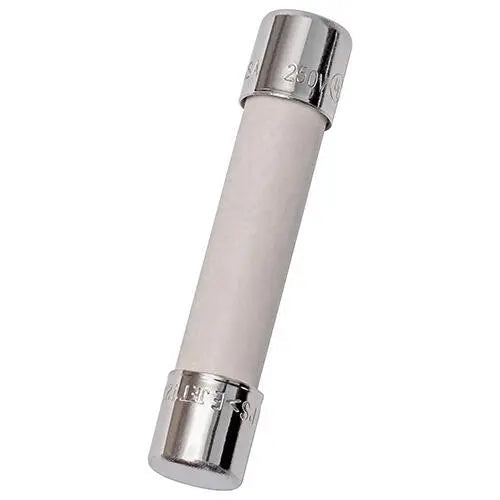

GSA2 is a 2 Amp, 250 Volt time-delay fuse designed for low voltage applications requiring reliable circuit protection.GSA2 features a cylindrical ceramic body measuring approximately 1-1/4 inches in length and 1/4 inch in diameter. It is rated for 2 amps continuous current and 250 volts AC, with an interrupt rating of 100 amps at 250 VAC and 10,000 amps at 125 VAC. This fuse is UL listed and CSA certified, suitable for use in standard fuse holders for motor and electronic circuit protection.
- Amperage: 2 Amps
- Voltage Rating: 250 VAC
- Poles: 1
- Mounting Type: Cylindrical plug-in fuse
- Interrupt Rating: 100A at 250 VAC, 10kA at 125 VAC
- Fuse Type: Time-Delay
- Dimensions: 1-1/4 inch length x 1/4 inch diameter
- Certifications: UL Listed, CSA Certified
- Series/Frame: GSA Series
- Application: Low voltage motor and electronic circuit protection
Specifications
- Part Number: GSA2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GSA Series
- Type : GSA
- Voltage : 250
- Amperage : 2
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
- Velocity : Time-Delay
Product Data
- UPC : 782001764128
- GTIN : 00782001764128
- Country of Origin : China
- Dimensions : x 1-1/4" x
- Weight : 0.3
- Certification : UL, CSA
