Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GSA15

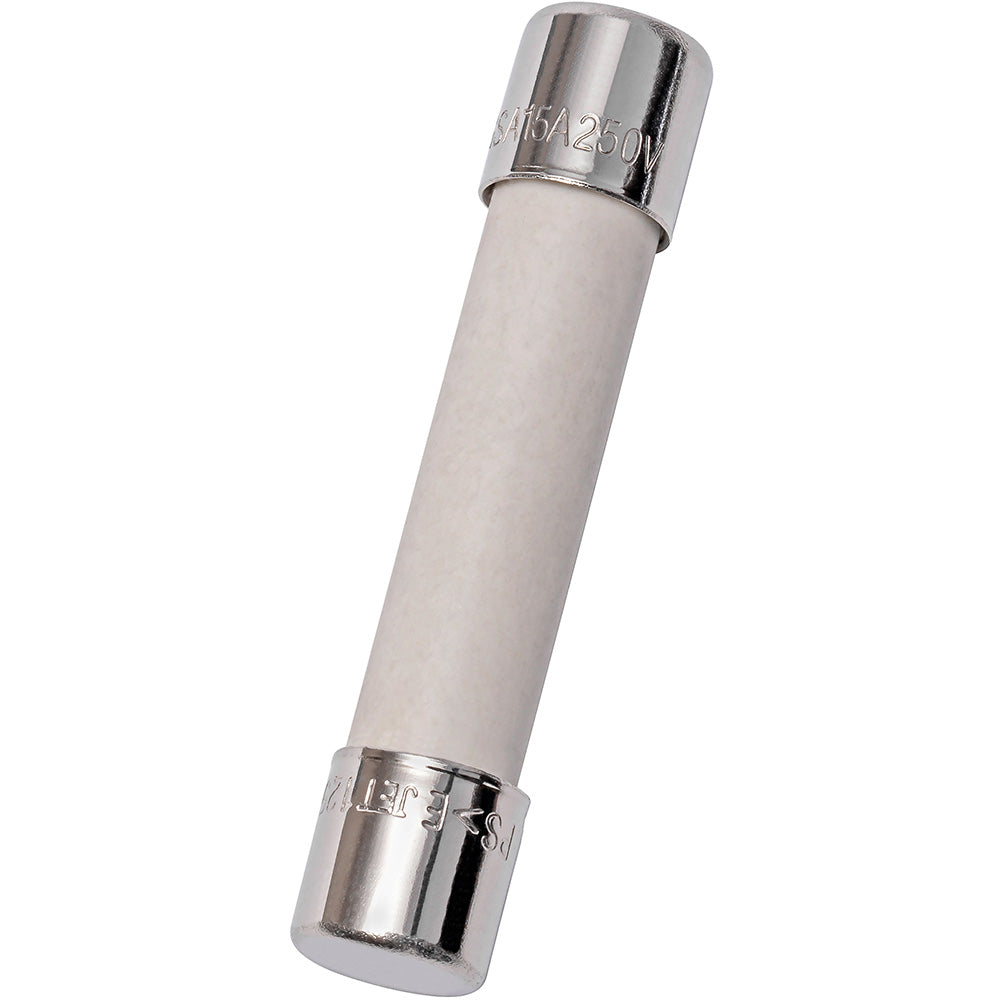

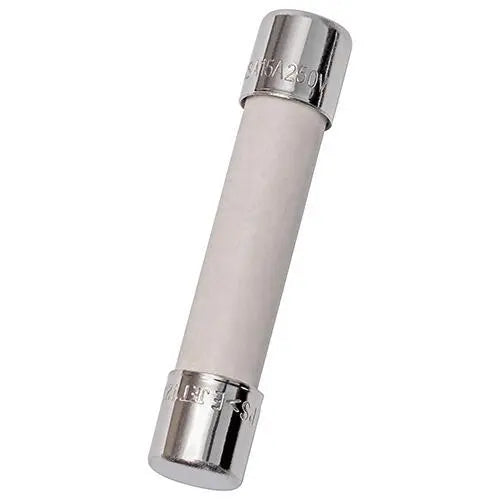

GSA15 is a Ferraz Shawmut time delay ceramic fuse rated for 15 amps and 250 volts AC.This miniature fuse features a ceramic body with dimensions of 1/4" diameter by 1-1/4" length, designed for time delay applications. It has an interrupting rating of 750 amperes at 250VAC and 10,000 amperes at 125VAC. The fuse is UL recognized and CSA certified for 250VAC use.
- Amperage: 15 A
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay
- Body Material: Ceramic
- Dimensions: 1/4" x 1-1/4"
- Interrupting Rating: 750 AIC @ 250 VAC
- Interrupting Rating: 10,000 AIC @ 125 VAC
- Certifications: UL Recognized, CSA Certified
- Poles: Single Pole
- Mounting Type: Inline Fuse Holder
Specifications
- Part Number: GSA15
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GSA Series
- Type : GSA
- Voltage : 250
- Amperage : 15
- AIC rating : 750A@250Vac
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
- Velocity : Time-Delay
Product Data
- UPC : 782001764234
- GTIN : 00782001764234
- Country of Origin : China
- Dimensions : 59 mm x 18 mm x 18 mm (Length/Depth x Height x Width)
- Weight : 0.01633
- Certification : CSA, UL
