Product Info
- Manufacturer:Appleton
- Sub-Category:Rigid conduit fitting / reducer
Description
GRL100

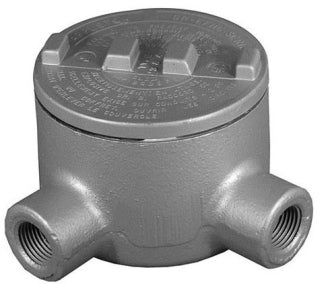

GRL100 is an Appleton L-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box featuring a 1 inch hub size and 18 cubic inch capacity.This conduit outlet box is constructed from malleable iron with a zinc electroplated, chromate, and epoxy powder coated finish for durability and corrosion resistance. It includes two 1 inch hubs located on the sides and a 3.38 inch cover opening. The box is designed for use in hazardous locations including Class I Division 1 and 2, Groups B, C, and D, and Class II Division 1 and 2 environments. It meets UL and CSA certifications for explosionproof applications.
- Key Specifications
- Part Number: GRL100
- Manufacturer: Appleton
- Material: Malleable Iron with Zinc Electroplated/Chromate/Epoxy Powder Coated Finish
- Hub Size: 1 Inch
- Number of Hubs: 2 (Side)
- Capacity: 18 Cubic Inches
- Cover Opening: 3.38 Inches
- Style: L-Style
- Certifications: UL Listed, CSA Certified
- Suitable for Class I Div 1 & 2 Groups B, C, D; Class II Div 1 & 2
- Part Number: GRL100
- Manufacturer : Appleton
- Brand : Appleton
- Category : Conduit & Fittings
- Item Subcategory : Rigid conduit fitting / reducer
- Section : Outlet box
- Family : GR Series
- UPC : 781381442602
- GTIN : 00781381000000
- Dimensions : 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
- Weight : 0.5
Additional Information
Adapters, reducers, or fittings for rigid/IMC conduit
