GNF323 Siemens VBII Series Disconnect 240 ACV 100A Non-Fusible Switch

GNF323

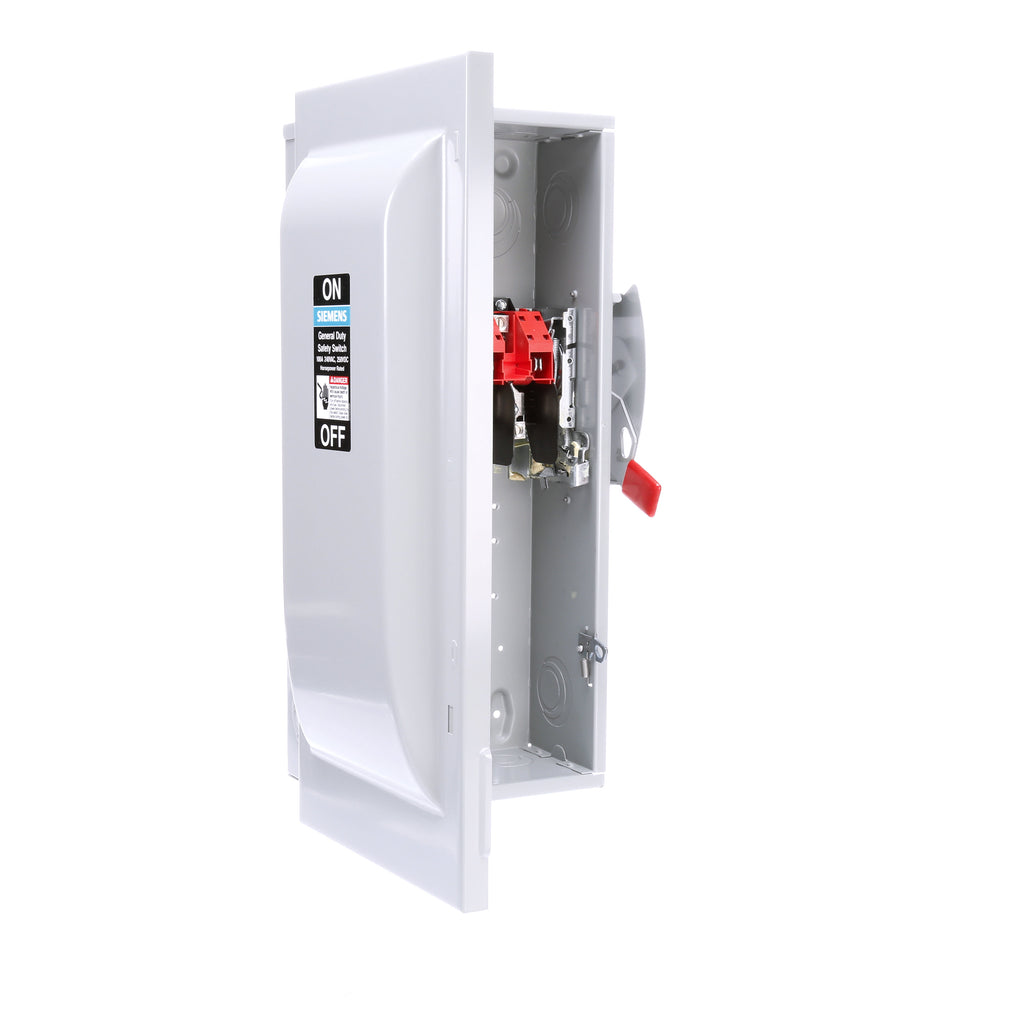

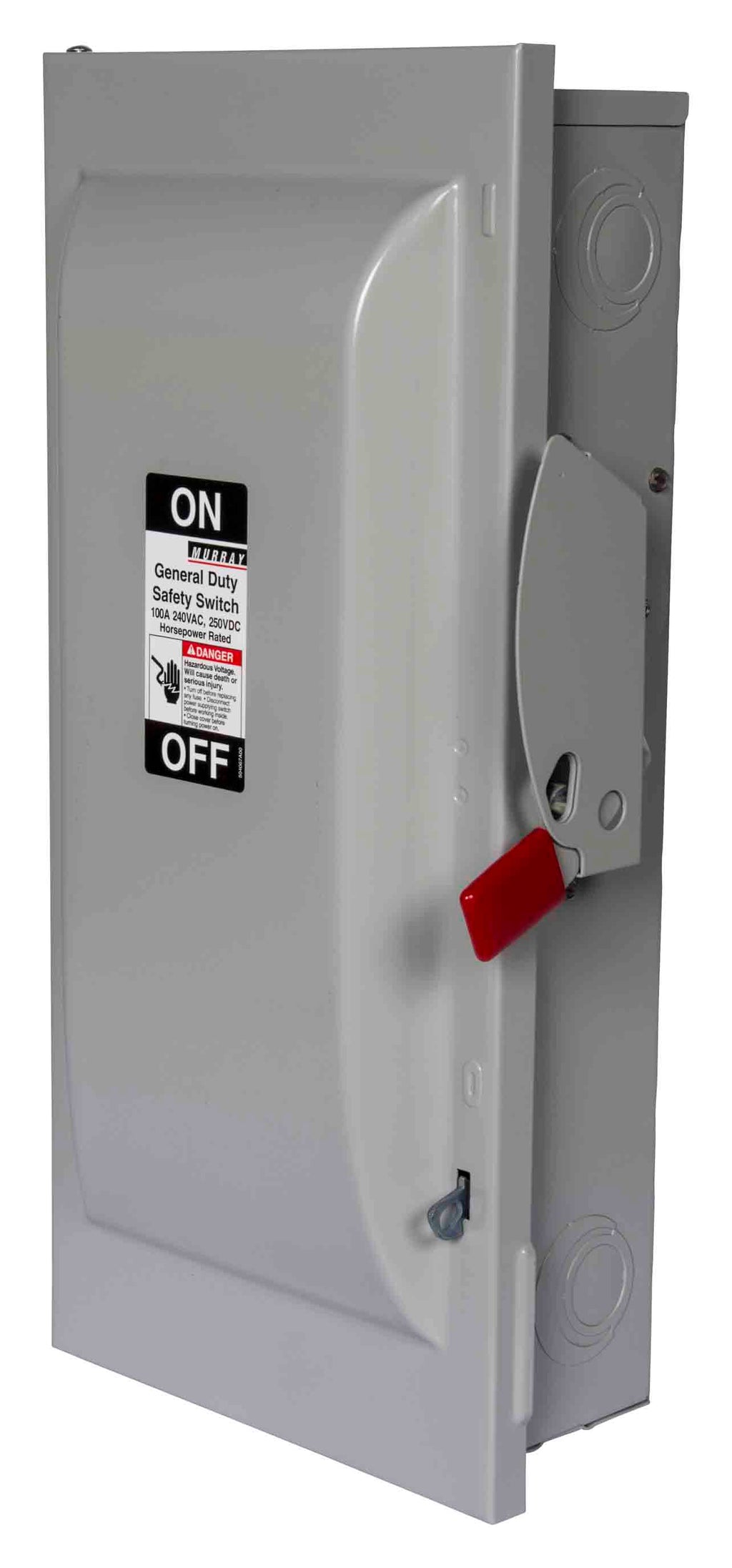

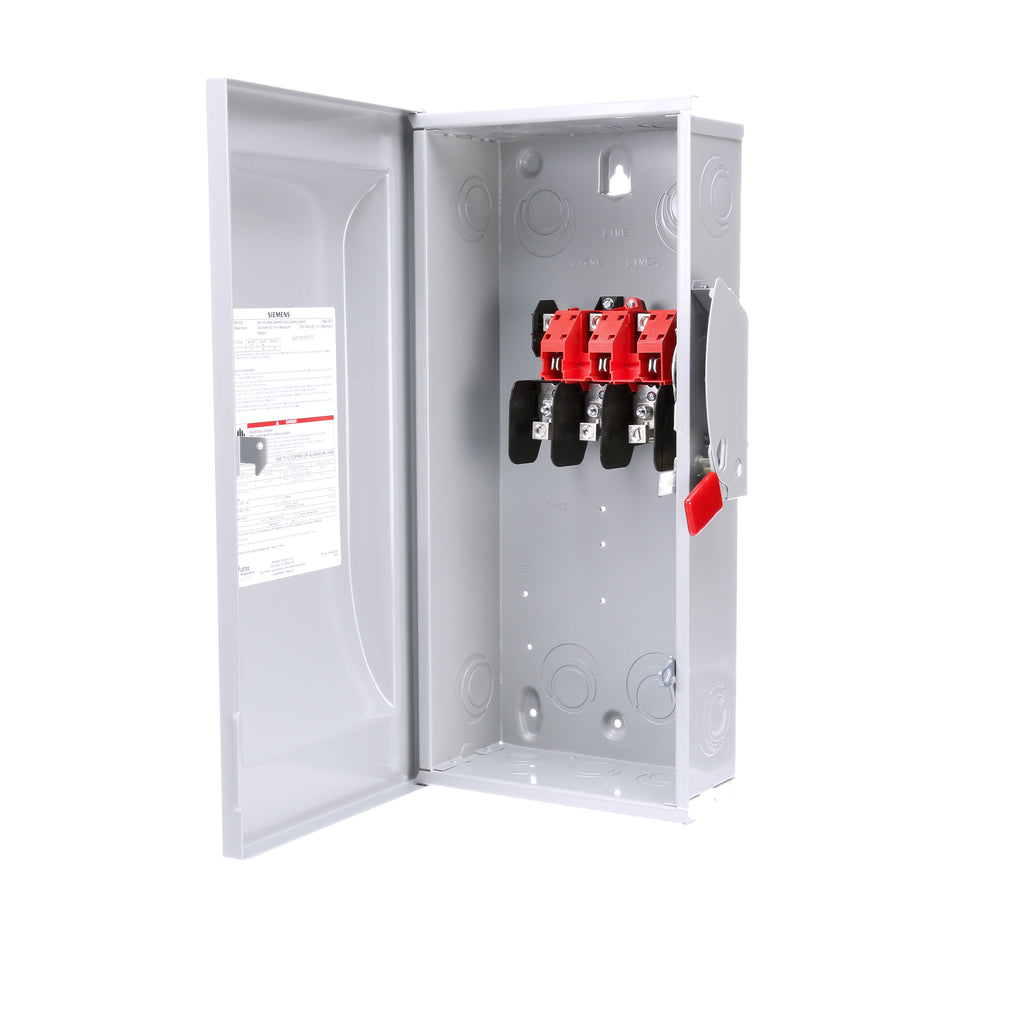

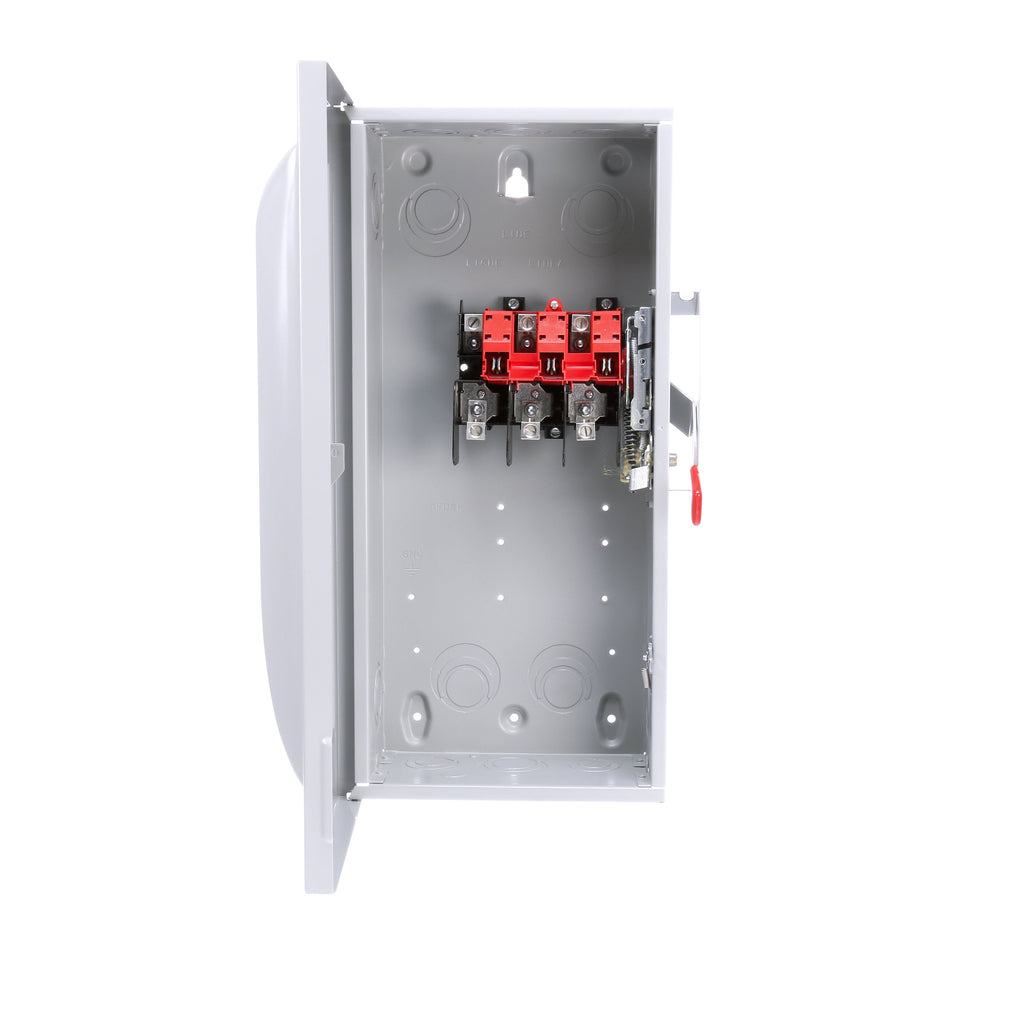

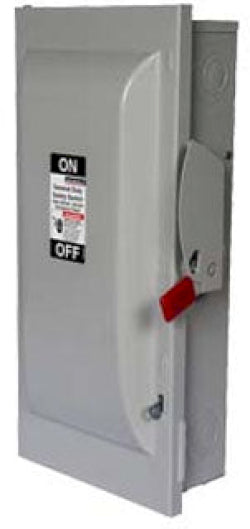

GNF323 is a Siemens 240 VAC/250 VDC 100 Amp 3-Pole 3-Wire NEMA 1 General Duty Non-Fusible enclosed safety switch designed for low voltage circuit protection applications.

This general duty safety switch features a single throw actuator with a steel Type 1 enclosure suitable for indoor use. The switch supports both single and three-phase configurations and is rated for 60 Hz operation. It is constructed with a durable steel housing and includes 2 or 3 point mounting hole options for flexible installation.

• Voltage Rating: 240 VAC / 250 VDC
• Amperage: 100 A
• Number of Poles: 3
• Wattage: 3 W
• Enclosure Type: NEMA 1
• Material: Steel
• Actuator Type: Single Throw
• Operating Temperature: -20 to 120 degrees F
• Mechanical Service Life: 10,000 cycles
• Frequency: 60 Hz
• Certification: UL

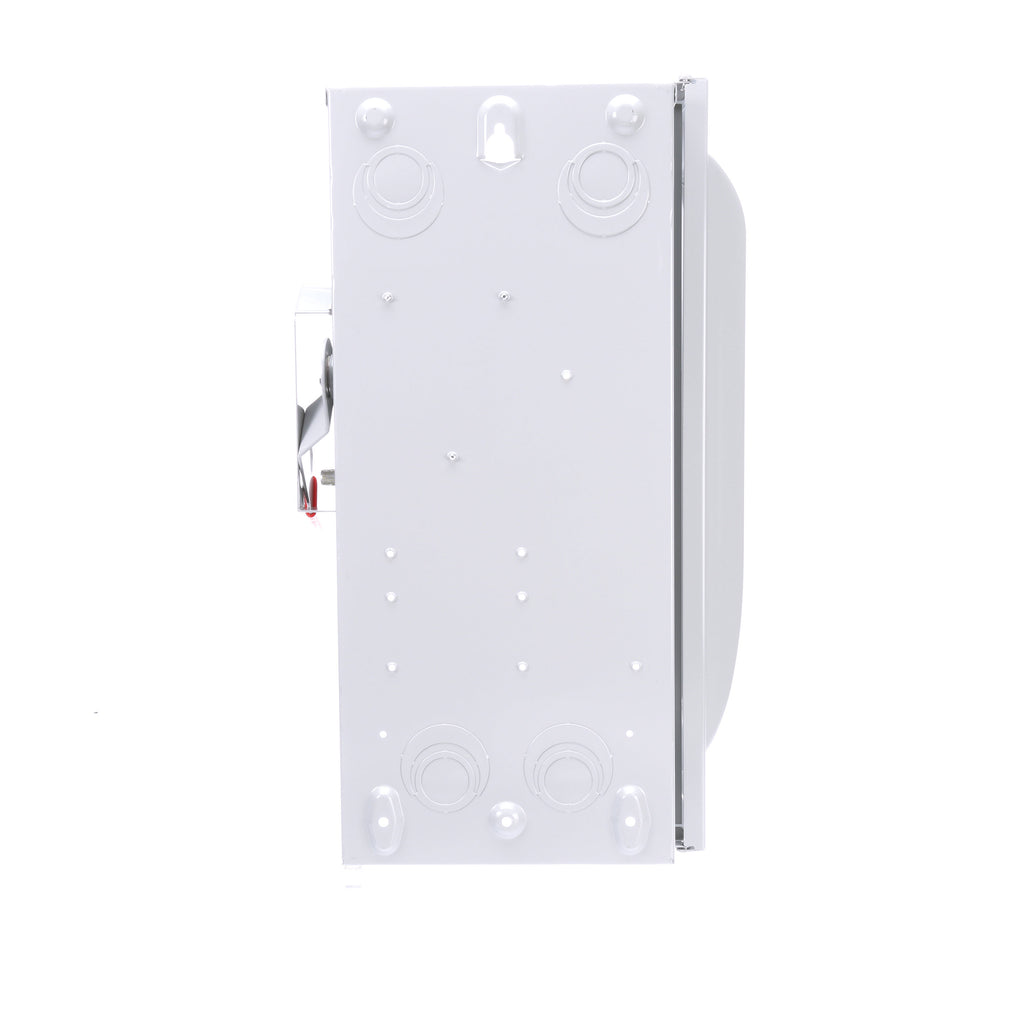

• Mounting: 2 or 3 point mounting holes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GNF323
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Non Fusible
• Family : VBII Series
• Type : GNF
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : Nema 1
• Compatible Frames : MHP

Product Data

• UPC : 783643149144
• GTIN : 00783643149144
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.874 inch
• Weight : 19.445
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL Listed
