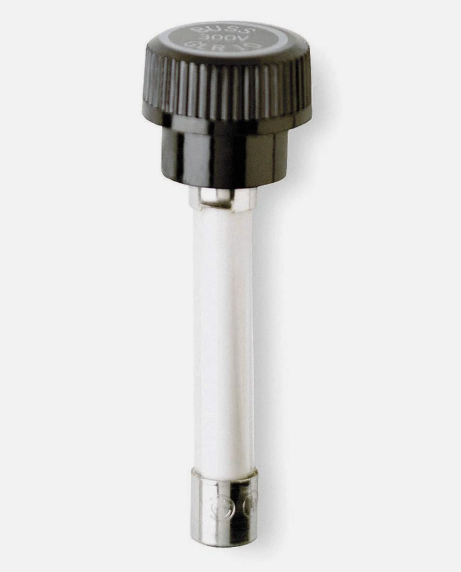

GMQ-1 - Eaton 1A 300V AC Time-Delay Slow Blow Fuse Cartridge UL CSA CE Certified

GMQ-1

GMQ-1 is a 1 amp, 300 volt AC time-delay slow blow fuse cartridge designed for low-voltage supplementary circuit protection. GMQ-1 features a glass body with a rejection type design to prevent overfusing and is UL Listed, CSA Certified, and CE marked for safety and reliability. It has an interrupting rating of 10,000 amps at 300 volts AC and mounts in HLQ size rejection fuse holders for secure panel installation. This fuse is ideal for protecting sensitive electronic equipment requiring time-delay characteristics to withstand temporary surges.

Key Specifications
• Current Rating: 1 Amp
• Voltage Rating: 300 Volts AC
• Fuse Type: Time-Delay / Slow Blow
• Interrupting Rating: 10,000 Amps at 300V AC
• Fuse Body: Glass Cartridge
• Mounting: Panel mount in HLQ size rejection fuse holder
• Certifications: UL Listed, CSA Certified, CE Marked
• Series: GMQ
• Poles: Single Pole
• Agency Files: UL Guide JDYX File E19180, CSA Class 1422-01 File 53787

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMQ-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : GMQ
• Voltage : 300
• Amperage : 1
• AIC rating : 10kA@300Vac
• Diameter : 0.63
• Barrels : 1

Product Data

• UPC : 05171271693
• GTIN : 00051712716932
• Country of Origin : Mexico
• Dimensions : x 2-1/4" x
• Weight : 1
• Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
