Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMF-2

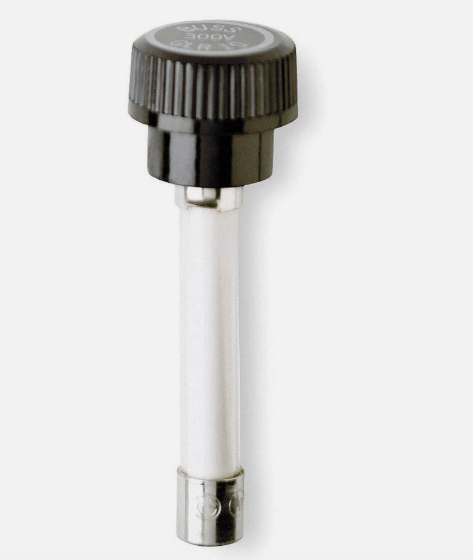

GMF-2 is a time-delay, glass-body fuse from Bussmann, Cooper Bussmann, and Eaton, designed for reliable circuit protection in demanding applications.
This inline-mounted fuse features a 2A current rating and 300VAC voltage rating, with a slow-blow (time-delay) characteristic for enhanced surge tolerance. It is part of the GMF series, known for robust construction and consistent performance. The fuse is UL listed to standard 248-14, ensuring compliance with industry safety requirements.
-
Key Specifications
- Part Number: GMF-2
- Manufacturer: Bussmann, Cooper Bussmann, Eaton
- Amperage: 2A
- Voltage: 300VAC
- Poles: 1
- Mounting Type: Inline
- Interrupt Rating: 10,000A
- Series/Frame: GMF
- Trip Unit: Time-Delay (Slow Blow)
- Certifications: UL Listed (Std. 248-14)
- Body Material: Glass
- Body Size: Ø15.9mm
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GMF-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GMF
- Voltage : 300
- Amperage : 2
- AIC rating : 10kA@300Vac
- Connection : Ferrule
- Diameter : 0.63
- Barrels : 1
Product Data
- UPC : 051712716796
- GTIN : 00051712716796
- Country of Origin : Mexico
- Dimensions : x 2-1/4 in x
- Weight : 1
- Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
