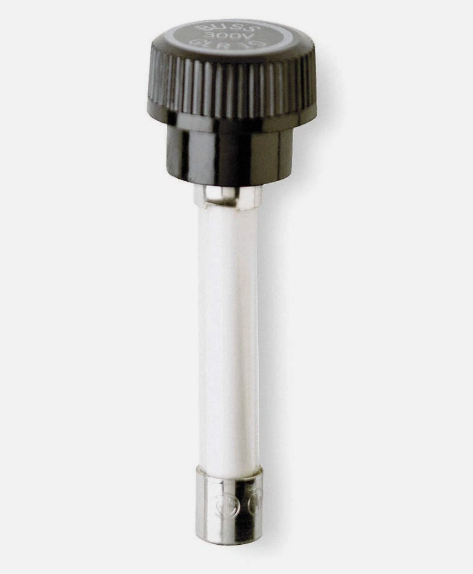

GMF-2-1/2 - Eaton 2.5A 300V Time-Delay In-Line Fuse 10kA Interrupt Rating

GMF-2-1/2

GMF-2-1/2 is a 2.5 amp, 300 volt time-delay in-line fuse from Eaton designed for reliable circuit protection.This Eaton Bussmann series fuse features a slow-blow (time-delay) characteristic suitable for protecting circuits with temporary surges. It has a 10,000 amp interrupting rating at 300 VAC and a cable mounting style. The fuse size measures approximately 57.15 mm in length and 15.9 mm in diameter. It is UL and CSA certified for safety and performance.

• Current Rating: 2.5 Amps
• Voltage Rating: 300 VAC
• Fuse Type: Time-Delay (Slow Blow)
• Interrupt Rating: 10,000 Amps
• Mounting Style: Cable
• Fuse Size: 57.15 mm length x 15.9 mm diameter
• Manufacturer Series: GMF
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMF-2-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : GMF
• Voltage : 300
• Amperage : 2
• AIC rating : 10kA@300Vac
• Connection : Ferrule
• Diameter : 0.63
• Barrels : 1

Product Data

• UPC : 05171271680
• GTIN : 00051712716802
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 1
• Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
