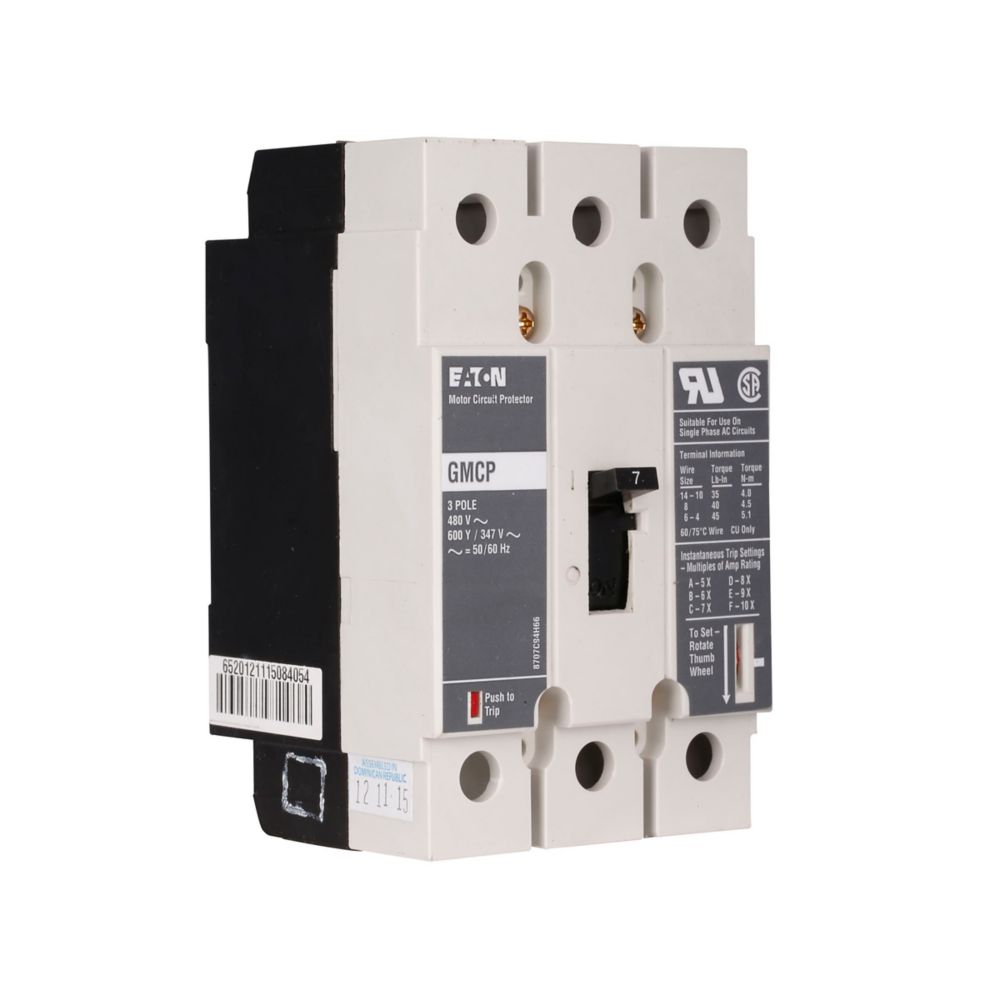

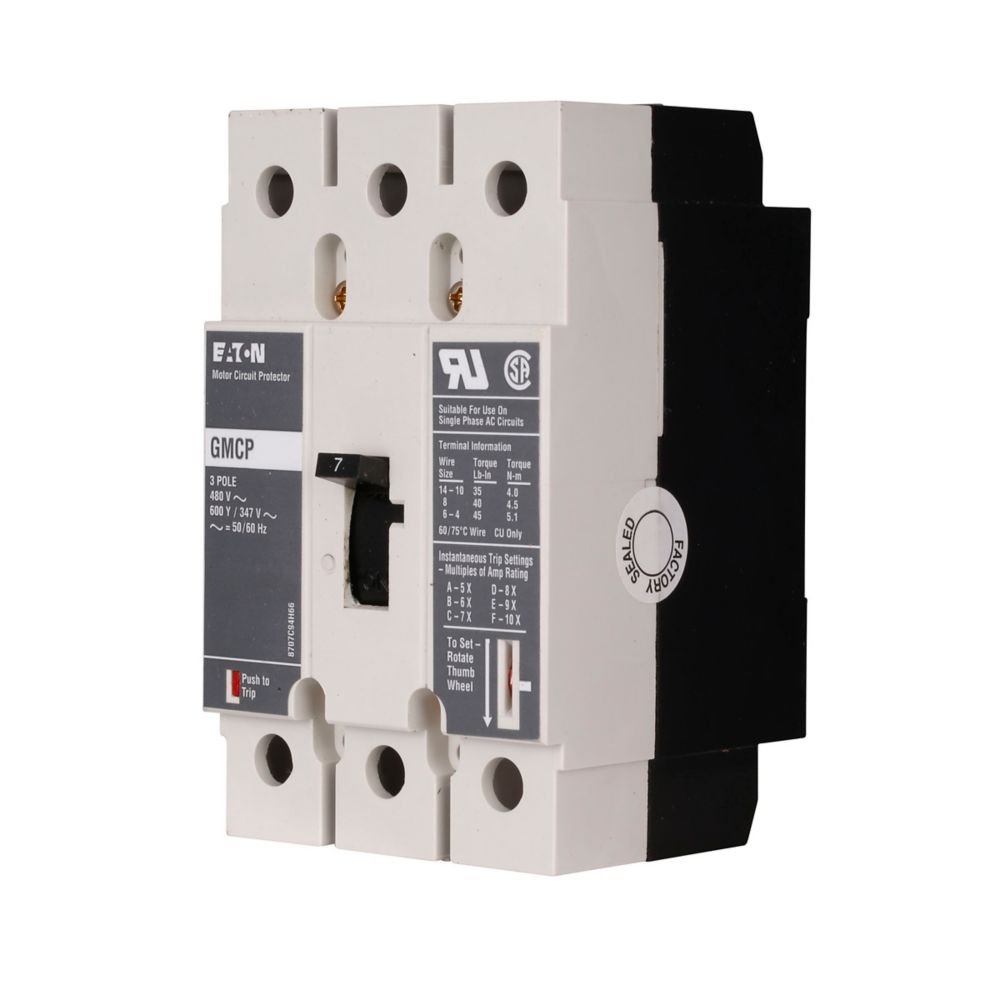

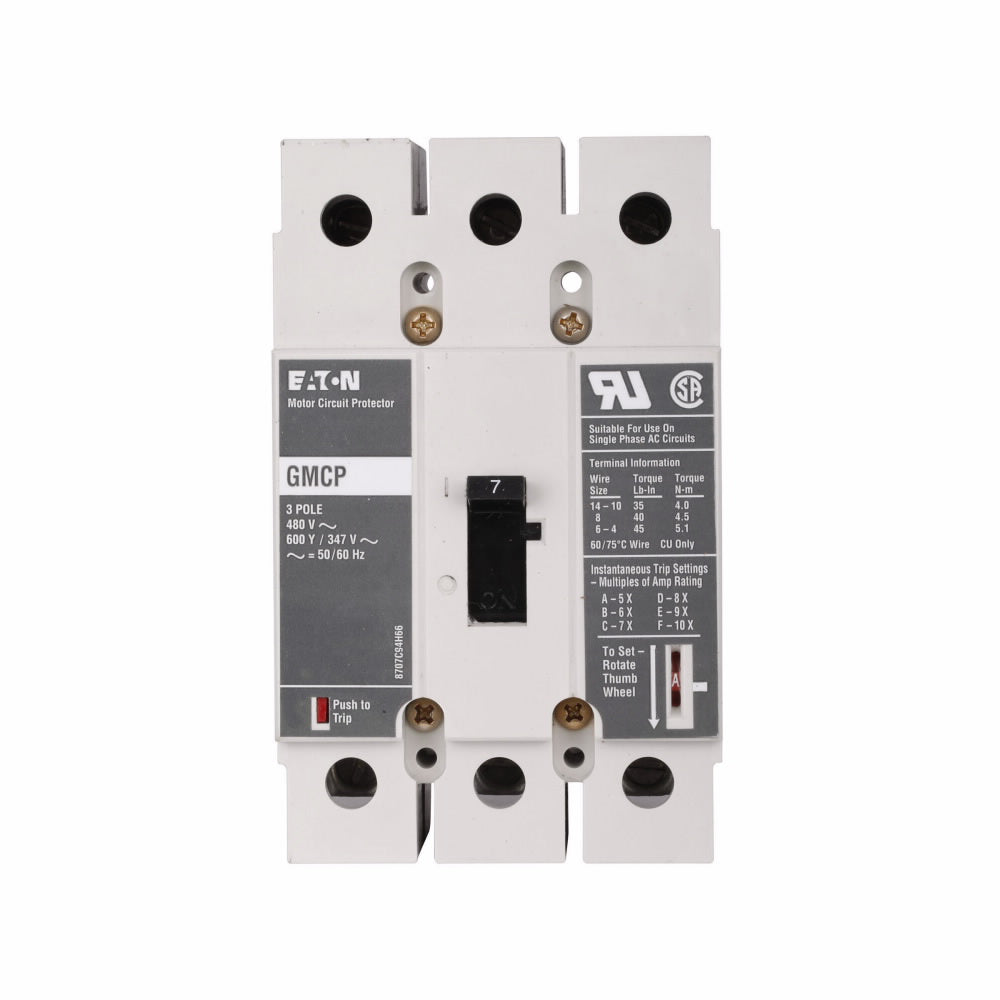

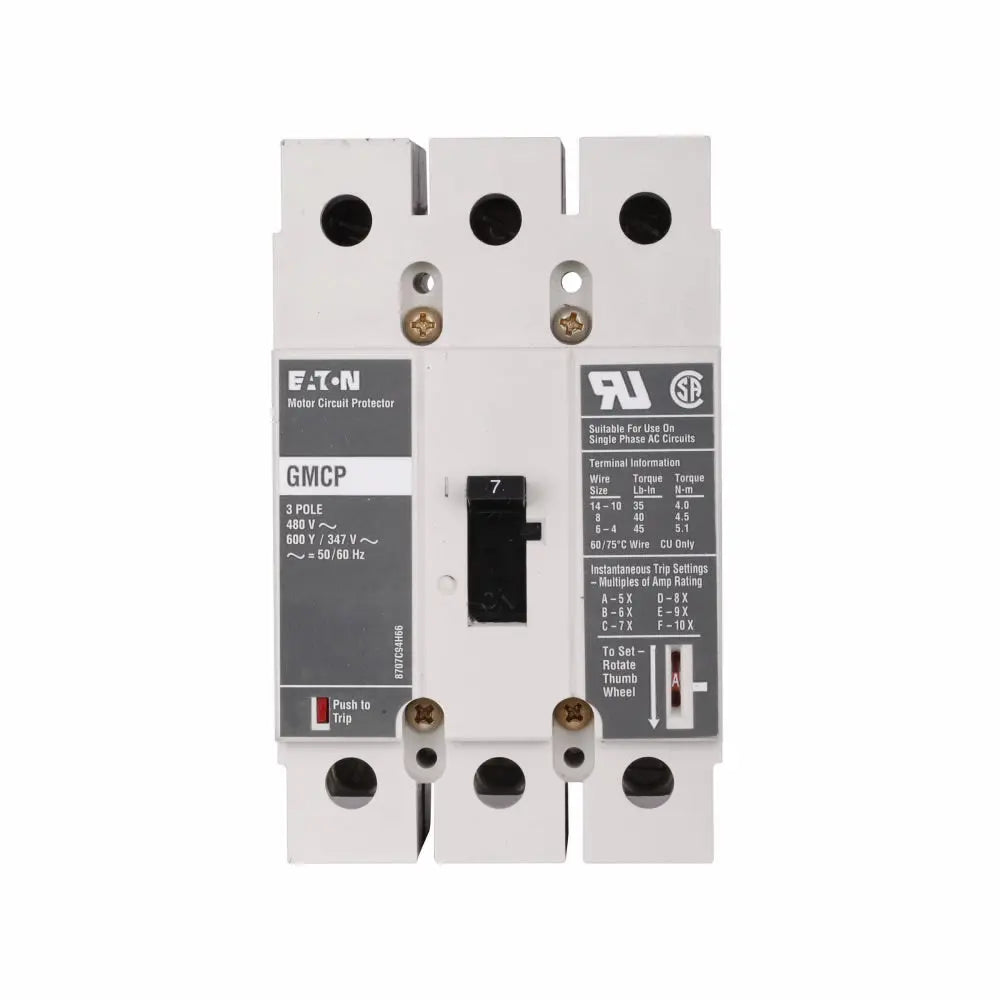

GMCP007C0C - Eaton 7 Amp 600VAC 3 Pole Motor Circuit Protector Frame J-K Series C

GMCP007C0C

GMCP007C0C is a 7 Amp, 3 Pole motor circuit protector from Eaton designed for reliable circuit protection in industrial applications.This Eaton molded case circuit breaker features a magnetic trip unit with a current rating of 7 Amps and voltage ratings of 600VAC and 250VDC. It belongs to the Series C, Frame J-K family and supports a magnetic trip range of 21-70 Amps. The device has a feed-thru connection type and an interrupting rating of 65kA at 480V. It is UL Listed and CSA Certified, ensuring compliance with industry safety standards.

Key Specifications
• Manufacturer: Eaton
• Part Number: GMCP007C0C
• Amperage: 7 Amps
• Voltage: 600VAC, 250VDC
• Poles: 3
• Series/Frame: Series C, Frame J-K
• Trip Unit: Magnetic
• Interrupt Rating: 65kA @ 480V
• Connection Type: Feed-thru
• Certifications: UL Listed, CSA Certified
• Terminal Material: Non-aluminum
• Weight: 4.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GMCP007C0C
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GMCP
• Voltage : 480
• Amperage : 7
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : G Frame
• Protection : Magnetic Only



Product Data

• UPC : 786679153819
• GTIN : 00786679153819
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.05
• Certification : IEC Rated
