Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

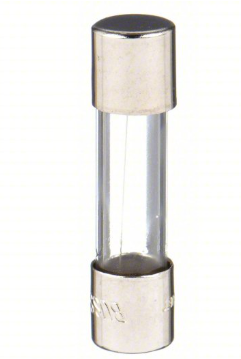

GMC-750MA
GMC-750MA is a medium time delay glass tube fuse designed for reliable circuit protection in a variety of electronic applications. This Eaton fuse features a 750mA current rating and a 250V AC voltage rating, making it suitable for use in equipment requiring moderate time delay characteristics. The GMC-750MA is constructed with a glass tube and nickel-plated brass endcaps, providing durability and consistent performance. It is designed to meet UL/CSA 248-14 standards and is ideal for applications where a medium time delay response is needed to prevent nuisance tripping during temporary overloads.
- Part Number: GMC-750MA
- Manufacturer: Eaton
- Current Rating: 750mA
- Voltage Rating: 250V AC
- Fuse Type: Medium Time Delay
- Physical Size: 5mm x 20mm
- Construction: Glass Tube, Nickel-Plated Brass Endcaps
- Standards: UL/CSA 248-14
- Mounting Type: Requires Holder
- Interrupting Rating: 10,000A
- Series: GMC
Specifications
- Part Number: GMC-750MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 750
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143189
- Country of Origin : China
- Weight : 1
