Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-630MA

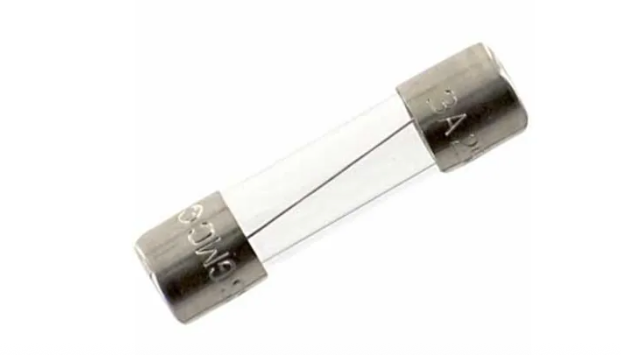

GMC-630MA is a Cooper Bussmann medium time delay glass tube fuse rated at 630 milliamps and 250 volts AC.
This GMC Series fuse features a 5mm x 20mm cylindrical glass tube design with a single barrel construction. It offers a medium time delay characteristic suitable for protecting sensitive electronic circuits. The fuse has a low interrupting rating of 35A at 250VAC and 10,000A at 125VAC, complying with UL/CSA 248-14 standards. It is UL Listed and Recognized, halogen free, and designed for use in low voltage applications requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 630mA (0.63A)
- Voltage Rating: 250VAC
- Fuse Type: Glass Tube, Cylindrical
- Time Delay: Medium
- Interrupting Rating: 35A at 250VAC, 10,000A at 125VAC
- Physical Size: 5mm x 20mm
- Poles: 1 Barrel
- Certifications: UL Listed Guide JDYX, File E19180; UL Recognized
- Halogen Free
- Series: GMC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GMC-630MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 630
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143172
- Country of Origin : China
- Weight : 1
