Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-5A

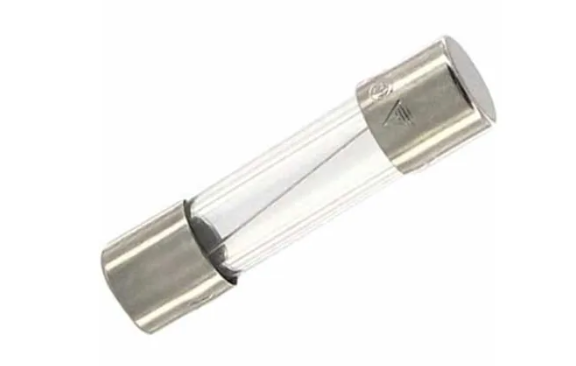

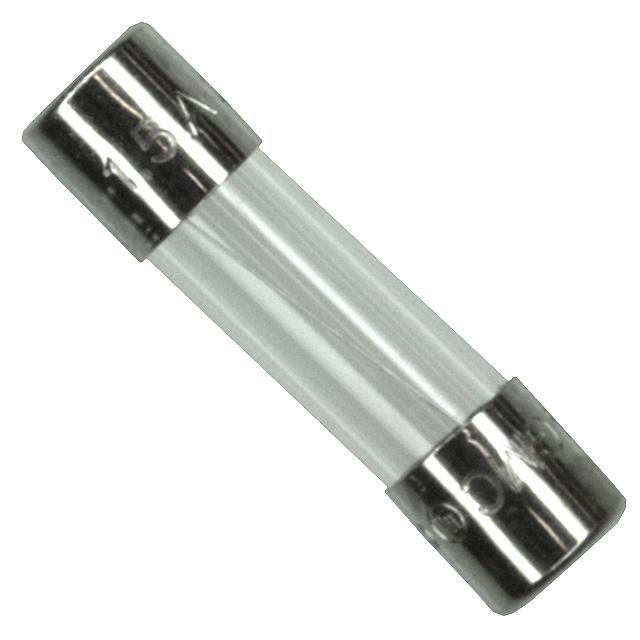

GMC-5A is a 5 amp, 125 VAC medium time-delay fuse designed for circuit protection in various electrical applications. It features a 5 mm x 20 mm glass tube construction with nickel-plated brass end caps.
This Eaton Bussmann series fuse offers a 10,000 amp interrupt rating and low resistance of 14 milliohms, ensuring reliable performance and protection against overcurrent conditions. The medium time-delay characteristic allows it to withstand temporary surges without blowing, making it suitable for motor and transformer protection.
- Current Rating: 5 Amps
- Voltage Rating: 125 VAC
- Size: 5 mm x 20 mm
- Interrupt Rating: 10,000 Amps
- Fuse Type: Medium Time-Delay
- Construction: Glass tube with nickel-plated brass end caps
- Resistance: 14 milliohms
- Diameter: 5.2 mm
- Series: Eaton Bussmann GMC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GMC-5A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 5
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143288
- GTIN : 00051712143288
- Country of Origin : China
- Weight : 1
