Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-500MA

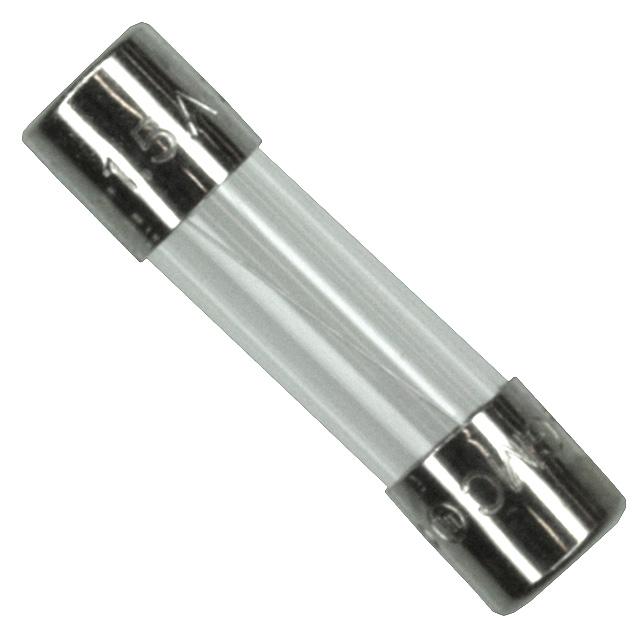

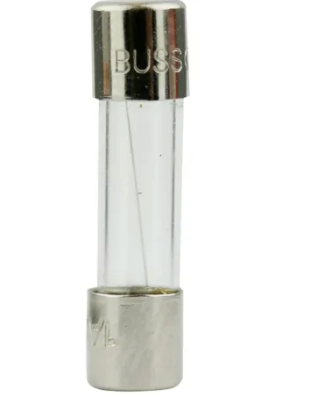

GMC-500MA is a 500mA, 250 Volt AC medium time delay glass tube fuse designed for circuit protection.This Eaton GMC series fuse features a 5 mm x 20 mm glass tube construction with nickel-plated brass end caps. It has a low breaking capacity and is rated for 10,000 AIC at 125 VAC and 35 AIC at 250 VAC. The fuse complies with UL/CSA 248-14 standards and is UL Listed and Recognized. It is halogen free and suitable for applications requiring medium time delay protection.
- Amperage: 500mA
- Voltage Rating: 250 VAC
- Physical Size: 5 mm x 20 mm
- Fuse Type: Medium Time Delay
- Interrupting Rating: 10,000 AIC @ 125 VAC, 35 AIC @ 250 VAC
- Mounting Type: Requires fuse holder
- Series: GMC
- Construction: Glass tube with nickel-plated brass end caps
- Certifications: UL Listed, UL Recognized, CSA Certified
- Halogen Free
Specifications
- Part Number: GMC-500MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 500
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143158
- Country of Origin : China
- Weight : 1
