Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-3A

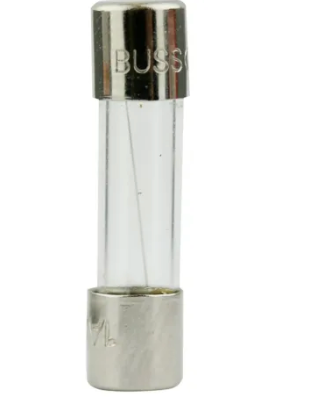

GMC-3A is a 3A, 250V AC medium time-delay glass fuse from Eaton Bussmann, designed for electronic circuit protection in a 5mm x 20mm cartridge format. This Eaton Bussmann GMC-3A fuse features a glass tube construction with nickel-plated brass end caps, providing reliable protection for sensitive electronic equipment. The medium time-delay characteristic allows for temporary current surges without nuisance tripping, making it ideal for applications requiring stable operation under variable loads. It is designed to meet UL/CSA 248-14 standards and is recognized for use in North American markets.
- Amperage: 3A
- AC Voltage Rating: 250V
- DC Voltage Rating: Not Rated
- Interrupt Rating: 100A at 250V AC, 10kA at 125V AC
- Physical Size: 5mm x 20mm
- Mounting Type: Cartridge
- Series: GMC
- Speed: Medium Time Delay
- Body Material: Glass
- End Cap: Nickel-plated Brass
- Certifications: UL Listed, CSA Certified, CE Marked
- Application: Electronic Circuits
Specifications
- Part Number: GMC-3A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- AIC rating : 100kA@250V
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143257
- Country of Origin : China
- Weight : 1
