Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-315MA

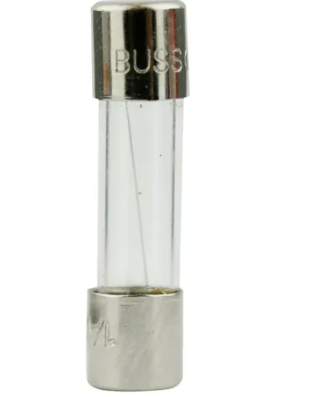

GMC-315MA is a medium time delay glass tube fuse rated for 315 milliamps and 250 volts AC, designed for cartridge mounting.This Eaton fuse features a 5mm x 20mm physical size with nickel-plated brass endcaps, providing low breaking capacity and interrupting ratings of 10,000 AIC at 125 VAC and 35 AIC at 250 VAC. It is UL listed and CSA certified to UL/CSA 248-14 standards, halogen free, and suitable for circuit protection requiring medium time delay characteristics.
- Current Rating: 315 mA
- Voltage Rating: 250 V AC
- Physical Size: 5mm x 20mm
- Mounting Type: Cartridge (requires holder)
- Fuse Type: Glass Tube
- Time Delay: Medium
- Interrupting Rating: 10,000 AIC @ 125 VAC, 35 AIC @ 250 VAC
- Agency Approvals: UL Listed, CSA Certified
- Standards: UL/CSA 248-14
- Halogen Free
Specifications
- Part Number: GMC-315MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 315
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143073
- Country of Origin : China
- Weight : 1
- Certification : Ul Listed Csa Certified Ce Marked
