Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

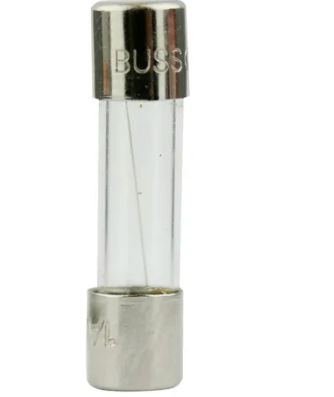

GMC-300MA
GMC-300MA is a 300mA, 250V AC medium time delay glass tube fuse from Eaton's GMC series.GMC-300MA features a 5mm x 20mm physical size, low breaking capacity, and is designed to UL/CSA 248-14 standards. It has an interrupting rating of 35A at 250VAC and 10,000A at 125VAC, making it suitable for protecting sensitive electronic circuits. The fuse is halogen free and UL listed, ensuring safety and reliability.
- Current Rating: 300mA
- Voltage Rating: 250V AC
- Fuse Type: Medium Time Delay
- Physical Size: 5mm x 20mm
- Interrupting Rating: 35A at 250VAC, 10,000A at 125VAC
- Glass Tube Construction with Nickel-Plated Brass Endcaps
- UL Listed and Recognized (Guide JDYX, File E19180)
- CSA Certified
- Halogen Free
- Low Breaking Capacity
- Designed to UL/CSA 248-14
Specifications
- Part Number: GMC-300MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 300
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143134
- Country of Origin : China
- Weight : 1
- Certification : Ul Listed Csa Certified Ce Marked
