Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

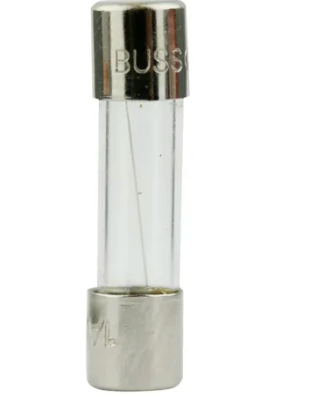

GMC-2A
GMC-2A is a medium time delay glass fuse from Eaton, designed for overcurrent protection in electronic circuits.
This 2 Amp, 250V AC fuse features a 5mm x 20mm glass tube construction with medium time delay characteristics, allowing it to withstand temporary overloads without nuisance tripping. It is UL Listed and CSA certified, meeting UL/CSA 248-14 standards, and is available in a RoHS-compliant version. The fuse offers low breaking capacity with specific interrupting ratings for different voltages.
-
Key Specifications
- Amperage: 2A
- Voltage: 250V AC
- Poles: Single
- Mounting Type: Ferrule end (5mm x 20mm glass tube)
- Interrupt Rating: 10,000 AIC @ 125V AC; 100 AIC @ 250V AC
- Series/Frame: GMC
- Trip Unit: Medium time delay (slo-blo)
- Certifications: UL Listed (Guide JDYX, File E19180), UL Recognized (Guide JDYX2, File E19180), CSA, RoHS option available
- Response Time: 60 minutes maximum at 135% of rating; 2 minutes maximum at 200% of rating
- Construction: Glass tube, brass end caps
- Halogen free
- Designed for electronic circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GMC-2A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 2
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143233
- Country of Origin : China
- Weight : 1
