Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

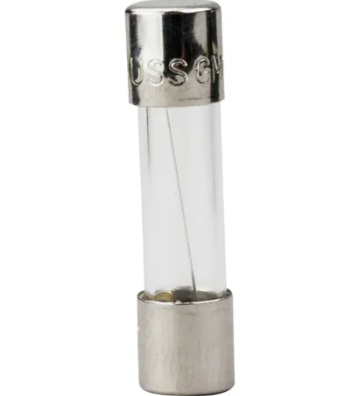

GMC-250MA
GMC-250MA is a medium time-delay glass tube fuse designed for reliable circuit protection in a variety of electrical applications. This Eaton Bussmann Series fuse features a 250mA current rating and a 250VAC voltage rating, making it suitable for use in low-breaking-capacity circuits where precise protection is required. The GMC-250MA fuse utilizes a 5 mm x 20 mm glass tube construction with nickel-plated brass endcaps, providing durability and consistent performance. Its medium time-delay response ensures protection against both short-term surges and sustained overloads, helping to prevent nuisance tripping while maintaining safety.
- 250mA Current Rating
- 250VAC Voltage Rating
- Medium Time-Delay Response
- Low Breaking Capacity
- 5 mm x 20 mm Physical Size
- Brass Endcap Material
- UL/CSA 248-14 Certified
- Interrupting Rating: 10,000A
- Pre-Arc I2t: 0.043
- AC Voltage Drop: 8.9 mV
- Response Time: 2 min max at 200%, 60 min max at 135%
- Series: GMC
Specifications
- Part Number: GMC-250MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 250
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143127
- Country of Origin : China
- Weight : 1
- Certification : Ul Listed Csa Certified Ce Marked
