Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

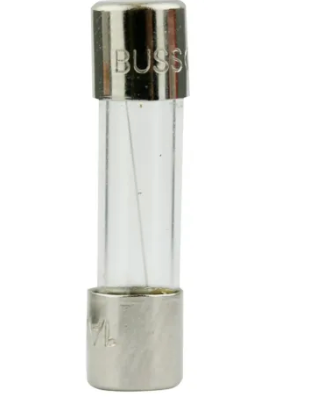

GMC-200MA
GMC-200MA is a medium time delay glass tube fuse rated for 200mA at 250V AC, designed for reliable circuit protection in electronic applications. This Eaton GMC series fuse features a 5mm x 20mm glass tube construction with nickel-plated brass endcaps, providing medium time delay characteristics and low breaking capacity for use in a variety of industrial and commercial equipment.
- 200mA Current Rating
- 250V AC Voltage Rating
- Medium Time Delay
- Low Breaking Capacity
- Interrupting Rating: 10,000 AIC @ 125V AC
- Interrupting Rating: 35 AIC @ 250V AC
- 5mm x 20mm Physical Size
- UL Listed, CSA Certified
- Designed to UL/CSA 248-14
- Halogen Free
- Requires Holder Mounting
- GMC Series
Specifications
- Part Number: GMC-200MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 200
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143110
- Country of Origin : China
- Weight : 1
- Certification : Ul Listed Csa Certified Ce Marked
