Product Info
- Manufacturer:Cooper Bussmann, Bussmann, Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-2.5A

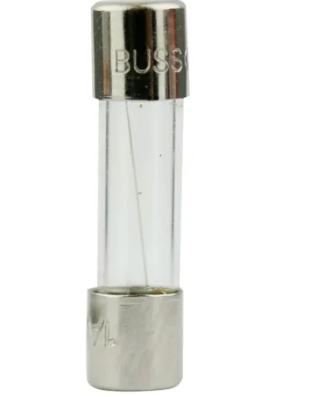

GMC-2.5A is a Cooper Bussmann medium time delay glass tube fuse rated for 2.5 amps and 250 volts AC.This 5 mm x 20 mm fuse features a low breaking capacity and is designed for electronic circuit protection.Technical Description: The GMC-2.5A fuse has a medium time delay characteristic, suitable for applications requiring temporary current surges tolerance. It has an interrupting rating of 10,000 AIC at 125 VAC and 100 AIC at 250 VAC. The fuse is constructed with a glass tube and nickel-plated brass end caps, compliant with UL/CSA 248-14 standards. It is UL Listed and Recognized, halogen free, and meets multiple international certifications.
- Amperage: 2.5 Amps
- Voltage Rating: 250 Volts AC
- Physical Size: 5 mm x 20 mm
- Fuse Type: Glass Tube
- Time Delay: Medium
- Interrupting Rating: 10,000 AIC @ 125 VAC, 100 AIC @ 250 VAC
- Mounting Type: Cartridge Fuse
- Certifications: UL Listed, UL Recognized, CSA Certified
- Series: GMC
- Halogen Free
Specifications
- Part Number: GMC-2.5A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 2.5
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143240
- GTIN : 00051712143240
- Country of Origin : China
- Weight : 1
