Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-1A

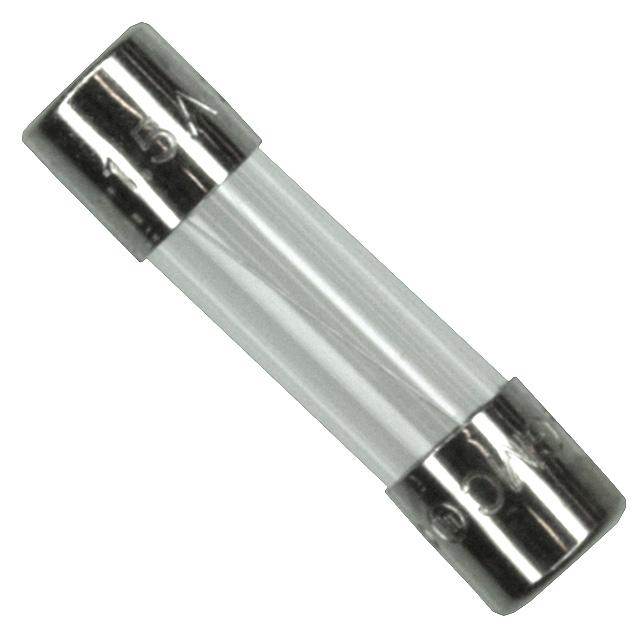

GMC-1A is a 1 amp medium time-delay cartridge fuse designed for low-voltage circuit protection applications. This miniature glass tube fuse features nickel-plated brass end caps and is constructed to meet UL/CSA 248-14 standards for reliable performance and safety compliance.Key Specifications
- Amperage: 1A
- Voltage Rating: 250V AC
- Physical Size: 5mm x 20mm
- Fuse Type: Medium Time-Delay
- Construction: Glass tube with nickel-plated brass end caps
- Interrupt Rating: 10,000A at 250V AC
- Certification: UL/CSA 248-14
- Series: GMC
- Opening Time at 200% Load: 2 minutes maximum
Specifications
- Part Number: GMC-1A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 1
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143202
- Country of Origin : China
- Weight : 1
