Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

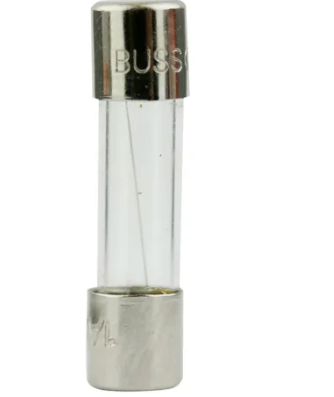

GMC-150MA
GMC-150MA is a medium time-delay glass tube fuse designed for reliable circuit protection in a variety of electronic applications. This Eaton fuse features a 5mm x 20mm physical size and is constructed with a glass tube and nickel-plated brass endcaps for durability and consistent performance. The GMC-150MA fuse is engineered to provide medium time-delay characteristics, making it suitable for applications where temporary current surges are expected. It is rated for 150mA at 250V AC and is designed to meet UL/CSA 248-14 standards. The fuse is available with optional axial leads and is intended for use in fuse holders compatible with the 5mm x 20mm size.
- Amperage: 150mA
- Voltage Rating: 250V AC
- Physical Size: 5mm x 20mm
- Mounting Type: Requires fuse holder
- Interrupting Rating: 10,000A
- Series: GMC
- Blow Characteristic: Medium time-delay
- Construction: Glass tube, nickel-plated brass endcaps
- Standards: UL/CSA 248-14
- Optional: Axial leads available
Specifications
- Part Number: GMC-150MA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 150
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143066
- Country of Origin : China
- Weight : 1
