Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMC-10A

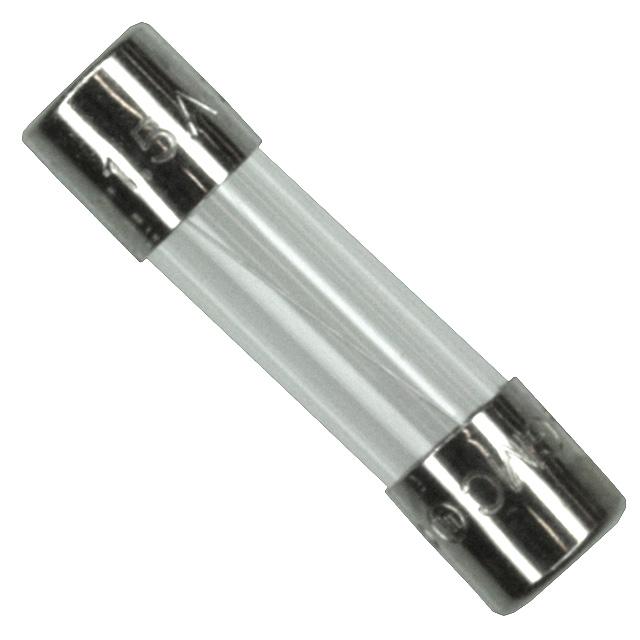

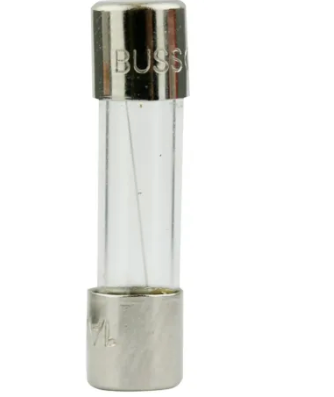

GMC-10A is a Cooper Bussmann, Bussmann, and Eaton medium time-delay glass fuse designed for reliable circuit protection in low-voltage applications.
This 5mm x 20mm glass tube fuse features nickel-plated brass endcaps, a medium time-delay characteristic, and is available in both 125V and 250V versions. It is engineered for low breaking capacity applications and complies with major safety standards.
-
Key Specifications
- Amperage: 10A
- Voltage: 125V AC (some sources list 250V AC; verify for your application)
- Poles: 1
- Mounting Type: Ferrule (5mm x 20mm)
- Interrupt Rating: 200A @ 125V AC (some sources list 100kA @ 250V; verify for your application)
- Series/Frame: GMC Series
- Trip Unit: Medium time-delay
- Certifications: UL Listed (Guide JDYX, File E19180), UL Recognized (Guide JDYX2, File E19180), CSA Certified (Class 1422-01, File E65063), MITI Approval, KC-Mark
- Construction: Glass tube, nickel-plated brass endcaps
- Halogen Free
- Non-indicating
- Designed to UL/CSA 248-14
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GMC-10A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMC Series
- Type : GMC
- Voltage : 250
- Amperage : 10
- AIC rating : 100kA@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 051712143325
- Country of Origin : China
- Weight : 1
- Certification : Ul Listed Ce Marked
