GMA-800-R - Eaton 0.8A 250V Fast-Acting Glass Tube Fuse 5x20mm 35AIC 10kAIC

GMA-800-R

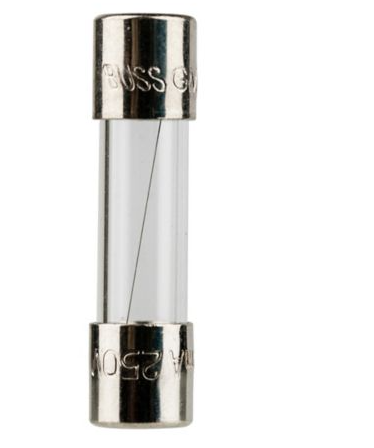

GMA-800-R is a fast-acting glass tube fuse from Eaton's Bussmann GMA series designed for electronic circuit protection.This fuse features a 0.8 ampere rating with a voltage rating of 250 VAC and 32 VDC (self-certified). It has a 5 mm x 20 mm size with nickel-plated brass end caps and ferrule end connections. The fuse provides interrupting ratings of 35 AIC at 250 VAC and 10,000 AIC at 125 VAC, suitable for low breaking capacity applications. It complies with UL, CSA, and CE standards and is RoHS compliant.

Key Specifications
• Amperage: 0.8 A
• Voltage Rating: 250 VAC, 32 VDC
• Fuse Type: Fast-acting glass tube
• Size: 5 mm x 20 mm
• Interrupting Rating: 35 AIC at 250 VAC, 10,000 AIC at 125 VAC
• Connection: Ferrule end x ferrule end
• Material: Glass tube with nickel-plated brass end caps
• Compliance: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Response Time: 60 min at 135%, 2 min at 200%
• Non-indicating fuse
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GMA-800-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 800
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1



Product Data

• UPC : 05171264807
• GTIN : 00051712648073
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
