Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMA-8-R

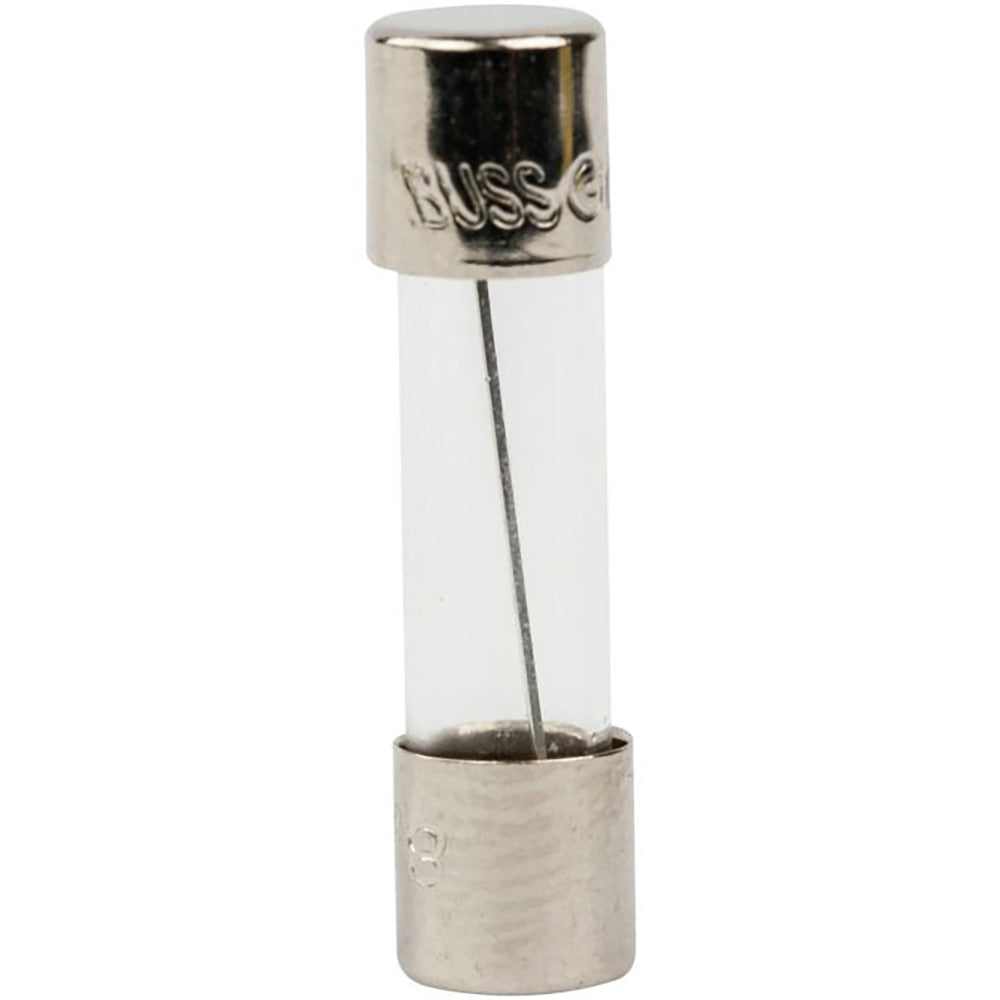

GMA-8-R is a fast-acting glass tube fuse from Eaton's GMA series, designed for reliable protection in electronic circuits. This 8A, 125VAC fuse features a 5mm x 20mm physical size and is constructed with nickel-plated brass end caps for durability and consistent performance. The Eaton GMA-8-R fuse is engineered for applications requiring fast blow characteristics and a high interrupt rating of 200 kAIC at 125VAC. It is suitable for use in control and solenoid circuits, offering dependable protection against overcurrent events. The fuse is non-indicating and features ferrule end connections for secure mounting.
- Part Number: GMA-8-R
- Manufacturer: Eaton
- Series: GMA
- Amperage Rating: 8 A
- Voltage Rating: 125 VAC, 32 VDC
- Physical Size: 5 mm x 20 mm
- Interrupt Rating: 200 kAIC at 125 VAC
- Mounting Type: Ferrule end x ferrule end
- Fuse Type: Fast-acting, glass tube
- Application: Electronic circuits
- Compliance: RoHS, UL Listed, CSA Certified
- Response Time: 60 min at 135%, 2 min at 200%
Specifications
- Part Number: GMA-8-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMA Series
- Type : GMA
- Voltage : 125
- AIC rating : 200A@125V
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 05171264806
- GTIN : 00051712648066
- Country of Origin : China
- Dimensions : x 20 mm x
- Weight : 1
- Certification : CE, PSE Approval, UL 248-14 Guide JDYX2 File E19180
