GMA-63-R - Eaton 0.063A 250V Fast-Acting Glass Tube Fuse 5x20mm, 10kA Interrupt Rating

GMA-63-R

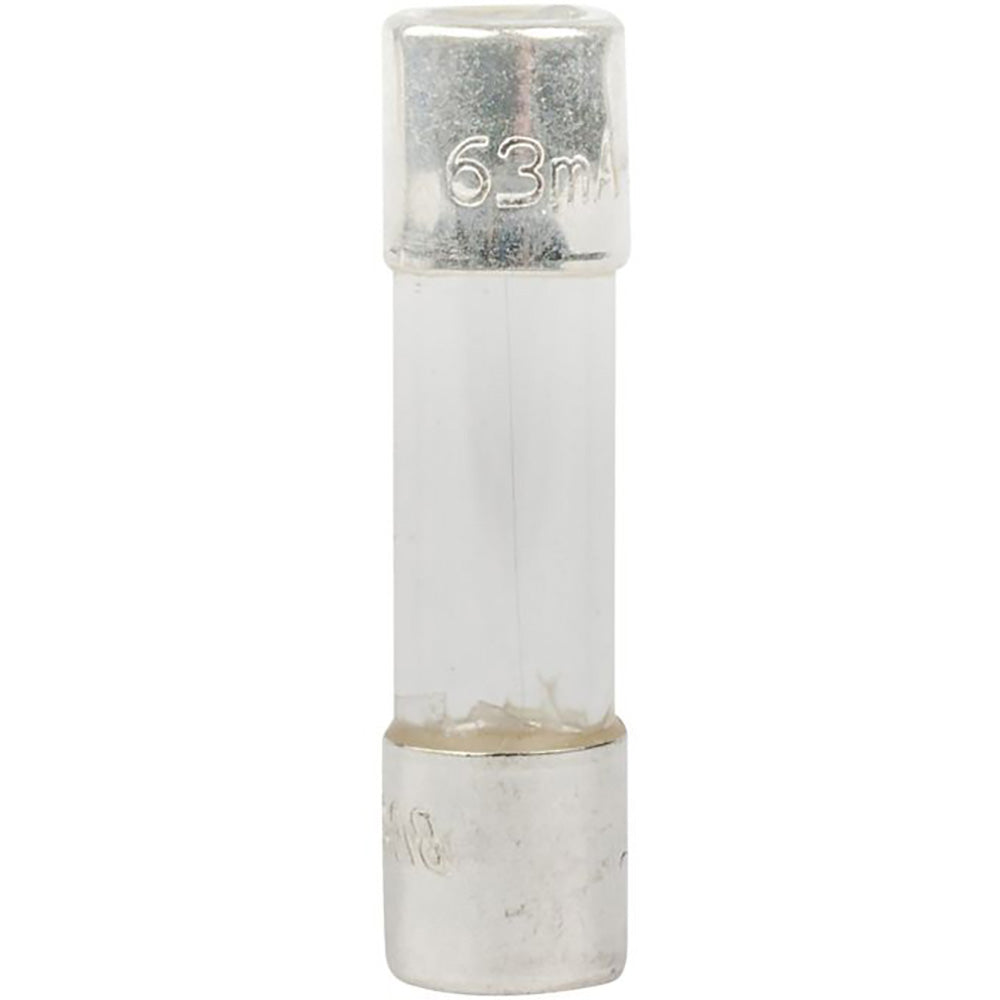

GMA-63-R is an Eaton Bussmann series fast-acting glass tube fuse rated at 0.063 amps and 250 volts AC, designed for electronic circuit protection.This fuse features a 5 mm x 20 mm glass tube construction with silver-plated brass end caps, providing reliable fast-acting performance with a low breaking capacity. It has an interrupt rating of 10,000 AIC at 125 VAC and 35 AIC at 250 VAC, compliant with UL/CSA 248-14 standards, RoHS compliant, and CE marked. The fuse is non-indicating and designed for use without axial leads in holder or clip mounting styles.

• Amperage Rating: 0.063A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Interrupt Rating: 10 kA at 125 VAC, 35 A at 250 VAC
• Fuse Type: Fast-acting glass tube
• Physical Size: 5 mm x 20 mm
• Connection: Ferrule end x ferrule end
• Response Time: 60 min at 135%, 2 min at 200%
• Material: Glass tube with silver-plated brass end caps
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Mounting Style: Holder/Clip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-63-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 63
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264803
• GTIN : 00051712648035
• Country of Origin : China
• Weight : 1
