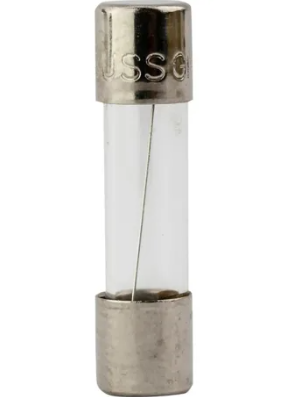

GMA-600-R - Eaton 0.6A 250V Fast-Acting Glass Tube Fuse 5x20mm Low Breaking Capacity

GMA-600-R

GMA-600-R is a fast-acting glass tube fuse from Eaton designed for electronic circuit protection.This 0.6 amp, 250 volt fuse features a 5 mm x 20 mm size with nickel-plated brass end caps and a low breaking capacity. It is UL listed, CSA certified, and RoHS compliant, suitable for use in holders or clips. The fuse has an interrupt rating of 10 kA at 125 VAC and 35 A at 250 VAC, with a response time of 60 minutes at 135% rated current and 2 minutes at 200%.

Key Specifications
• Amperage Rating: 0.6A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Size: 5 mm x 20 mm (0.2" x 0.79")
• Blow Characteristic: Fast Acting
• Interrupting Rating: 10 kA at 125 VAC, 35 A at 250 VAC
• Mounting Type: Holder/Clip
• Material: Glass tube with nickel-plated brass end caps
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Fuse Indicator: Non-indicating
• Connection: Ferrule end x ferrule end

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-600-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 600
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264802
• GTIN : 00051712648028
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
