GMA-500-R - Eaton 0.5A 250V Fast-Acting Glass Tube Fuse 5x20mm 35AIC Interrupt Rating

GMA-500-R

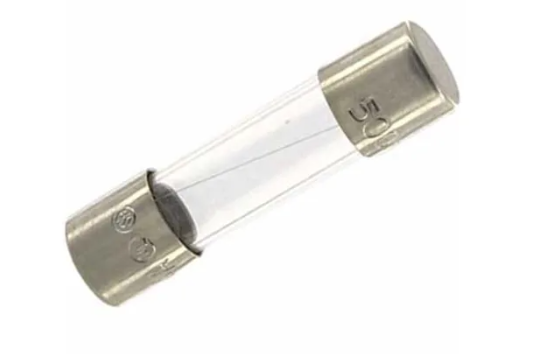

GMA-500-R is a fast-acting glass tube fuse from Eaton's Bussmann series designed for electronic circuit protection.This fuse features a 0.5 ampere rating with a voltage rating of 250 Vac and 32 Vdc (self certified). It has a 5 mm x 20 mm glass tube construction with nickel-plated brass end caps and a non-indicating design. The fuse offers an interrupt rating of 35 AIC at 250 Vac and 10 kAIC at 125 Vac, suitable for low breaking capacity applications. It requires mounting in a fuse holder or clip and complies with CE marking and RoHS standards.

Key Specifications
• Amperage Rating: 0.5 A
• Voltage Rating: 250 Vac, 32 Vdc (self certified)
• Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
• Fuse Type: Fast-acting (fast blow)
• Physical Size: 5 mm x 20 mm glass tube
• Connection: Ferrule end x ferrule end
• Mounting Type: Requires holder or clip
• Material: Glass tube with nickel-plated brass end caps
• Response Time: 60 min at 135%, 2 min at 200%
• Certifications: CE Marked, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GMA-500-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 500
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1



Product Data

• UPC : 05171264799
• GTIN : 00051712647991
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
