GMA-5-R - Eaton 5A 125V Fast-Acting Glass Tube Fuse 5x20mm, 10kA Interrupt Rating

GMA-5-R

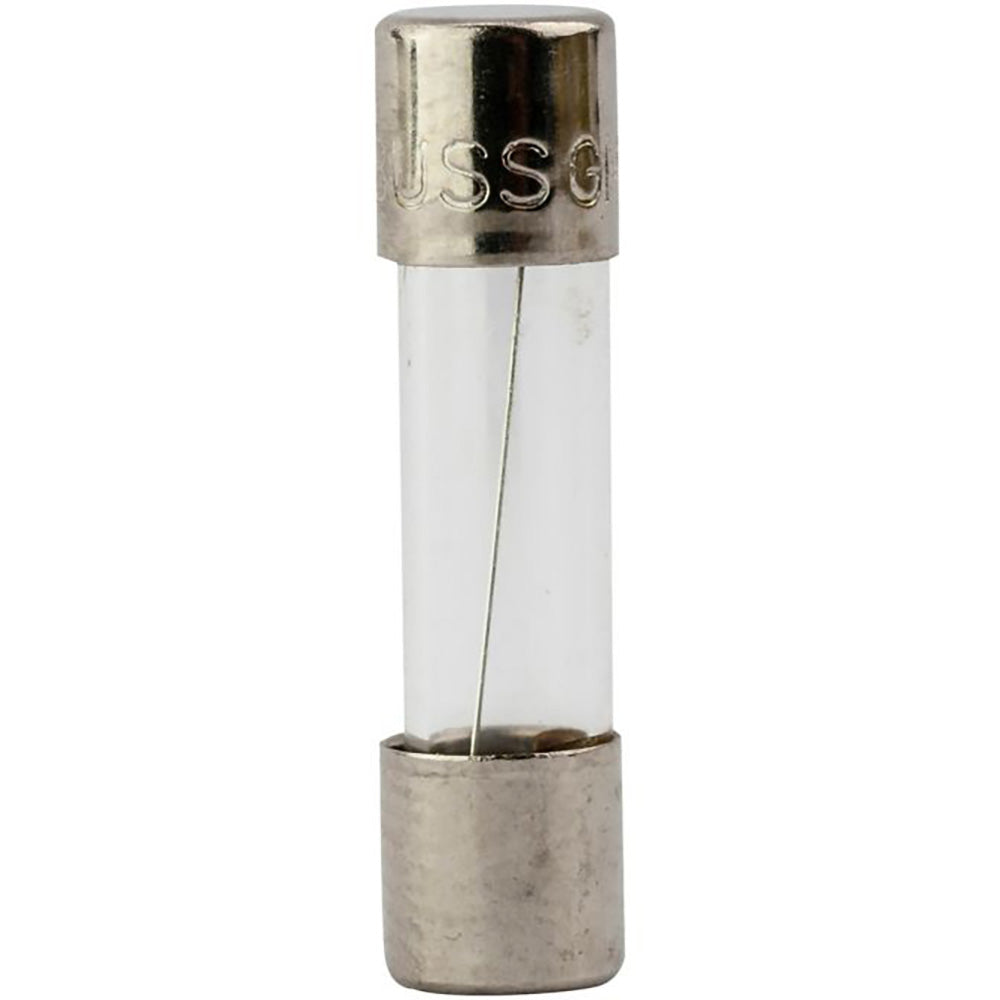

GMA-5-R is a fast-acting glass tube fuse from Eaton designed for electronic circuit protection.This Eaton GMA Series fuse features a 5 ampere rating, 125 VAC and 32 VDC voltage rating, and a 10,000 A interrupting rating at 125 VAC. It has a 5 mm x 20 mm physical size with nickel-plated brass end caps and ferrule end connections. The fuse complies with UL/CSA 248-14 standards and is RoHS compliant. It is non-indicating and designed for use without axial leads.

Key Specifications
• Amperage Rating: 5 A
• Voltage Rating: 125 VAC, 32 VDC
• Interrupting Rating: 10 kA at 125 VAC
• Fuse Type: Fast-acting glass tube
• Physical Size: 5 mm x 20 mm
• Connection: Ferrule end x ferrule end
• Material: Glass tube with nickel-plated brass end caps
• Compliance: UL Listed, CSA Certified, RoHS Compliant
• Fuse Indicator: Non-indicating
• Application: Electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-5-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 125
• AIC rating : 10kA@125V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264798
• GTIN : 00051712647984
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
