Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

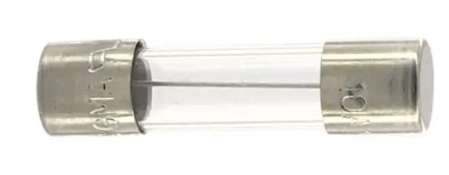

GMA-4/10-R
GMA-4/10-R is a fast-acting glass tube fuse designed for electronic circuit protection in compact applications. This 3AG form factor fuse combines reliable performance with a small cylindrical body, making it ideal for space-constrained installations requiring fast-blow protection at standard AC voltage ratings.Key Specifications
- Current Rating: 4/10 Amps
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast-Acting
- Fuse Size/Group: 3AG (6.3 mm x 32 mm)
- Body Style: Cylindrical Glass Tube
- End Cap: Nickel Plated Brass
- Interrupting Rating: 10 kA at 125 Vac; 35 A at 250 Vac
- Standards: IEC 60127-2 Compliant
- RoHS Compliant
Specifications
- Part Number: GMA-4/10-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : GMA Series
- Type : GMA
- Voltage : 250
- Amperage : 4
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- Weight : 0.15
