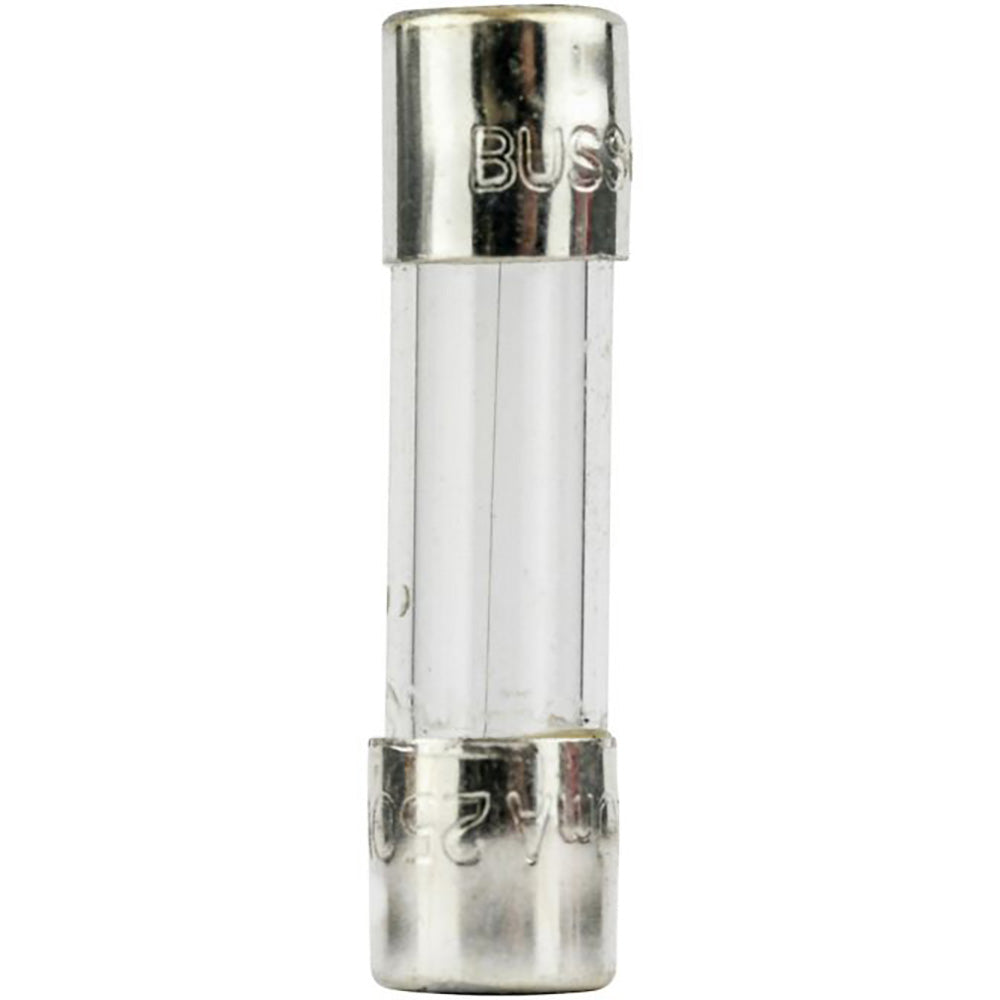

GMA-300-R - Eaton 300mA 250V Fast Acting Glass Tube Fuse 5x20mm 35A Interrupt Rating

GMA-300-R

GMA-300-R is a fast acting glass tube fuse from Eaton designed for circuit protection with a 300 milliampere rating and 250 volts AC voltage rating.This Eaton GMA series fuse features a 5 mm x 20 mm physical size, fast blow characteristics, and a low breaking capacity. It has an interrupting rating of 35 amps at 250 VAC and 10,000 amps at 125 VAC. The fuse is UL Listed, CSA Certified, and PSE Approved, meeting UL/CSA 248-14 standards. It is designed for mounting in holders or clips and is suitable for protecting sensitive electronic equipment.

• Current Rating: 300 mA
• Voltage Rating: 250 VAC
• Fuse Size: 5 mm x 20 mm
• Interrupting Rating: 35 A at 250 VAC, 10,000 A at 125 VAC
• Fast Acting (Fast Blow) Type
• Glass Tube Construction
• Mounting Style: Holder / Clip
• Certifications: UL Listed, CSA Certified, PSE Approved
• Series: GMA
• Low Breaking Capacity
• Physical Dimensions: 20 mm length x 5 mm diameter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-300-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264795
• GTIN : 00051712647953
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
