GMA-3.5-R - Eaton 3.5A 125VAC Fast-Acting Glass Tube Fuse 5x20mm 10kA Interrupt Rating

GMA-3.5-R

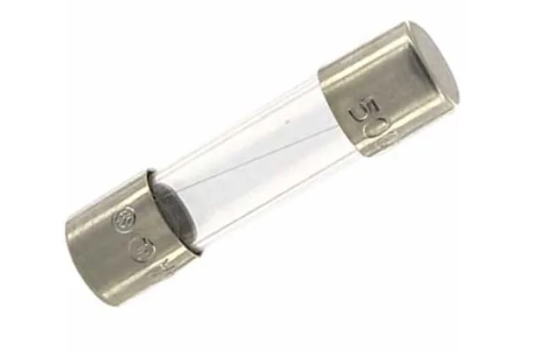

GMA-3.5-R is an Eaton Bussmann series fast-acting glass tube fuse rated for 3.5 amps and 125 volts AC with a 10,000 amp interrupt rating.This fuse features a 5 mm x 20 mm glass tube construction with nickel-plated brass end caps, designed for electronic circuit protection. It is fast-acting with a response time of 60 minutes at 135% rated current and 2 minutes at 200%. The fuse is UL Listed, CSA Certified, and RoHS compliant, suitable for low breaking capacity applications.

• Amperage Rating: 3.5A
• Voltage Rating: 125 VAC, 32 VDC
• Fuse Type: Fast-Acting
• Physical Size: 5 mm x 20 mm
• Interrupt Rating: 10,000 AIC at 125 VAC
• Construction: Glass tube with nickel-plated brass end caps
• Compliance: UL Listed, CSA Certified, RoHS Compliant
• Fuse Indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Application: Electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-3.5-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 125
• Amperage : 3.5
• AIC rating : 10kA@125V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264793
• GTIN : 00051712647939
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
