GMA-3.15-R - Eaton 3.15A 125V Fast-Acting Glass Tube Fuse, 5x20mm, 10kA Interrupt Rating

GMA-3.15-R

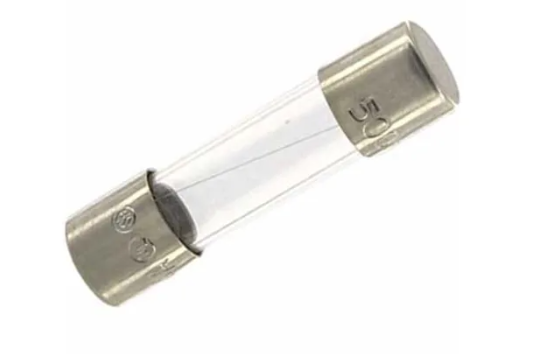

GMA-3.15-R is an Eaton Bussmann series fast-acting glass tube fuse rated at 3.15 amps and 125 volts AC.This fuse features a 5 mm x 20 mm glass tube construction with nickel-plated brass end caps, designed for electronic circuit protection.

• Amperage Rating: 3.15 A
• Voltage Rating: 125 Vac, 32 Vdc
• Interrupting Rating: 10,000 AIC at 125 Vac
• Fuse Type: Fast-acting (fast blow)
• Physical Size: 5 mm x 20 mm
• Connection: Ferrule end x ferrule end
• Material: Glass tube with nickel-plated brass end caps
• Response Time: 60 min at 135%, 2 min at 200%
• Certifications: UL Listed, UL Recognized, CSA Certified, PSE Approved
• Compliance: CE Marked, RoHS Compliant
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-3.15-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 125
• Amperage : 3.15
• AIC rating : 10kA@125V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264792
• GTIN : 00051712647922
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
