Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

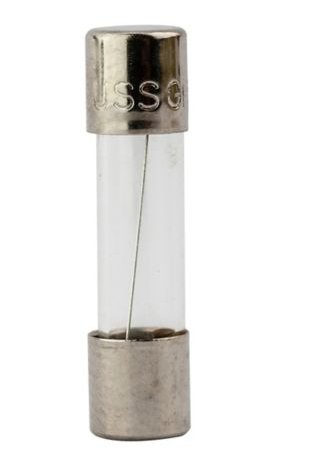

GMA-2A
GMA-2A is a 2 Amp, 250 Volt fast-acting glass tube fuse from Cooper Bussmann designed for low voltage applications.This fuse features a 5mm x 20mm physical size, fast blow timing, and a low breaking capacity with interrupt ratings of 10,000 AIC at 125 VAC and 100 AIC at 250 VAC. It is UL Listed, UL Recognized, CSA Certified, and PSE Approved, meeting UL/CSA 248-14 standards. The fuse has silver-plated or nickel-plated brass endcaps depending on amperage and is suitable for electronic circuit protection.
- Key Specifications
- Amperage: 2 Amps
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast Acting Glass Tube
- Physical Size: 5mm x 20mm
- Interrupting Rating: 10,000 AIC @ 125 VAC, 100 AIC @ 250 VAC
- Mounting Type: Cartridge
- Series: GMA
- Certifications: UL Listed, UL Recognized, CSA Certified, PSE Approved
- Standards: UL/CSA 248-14
- Endcap Material: Silver-plated or Nickel-plated Brass
Specifications
- Part Number: GMA-2A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMA Series
- Type : GMA
- Voltage : 250
- Amperage : 2
- AIC rating : 100A@250V
- Connection : Ferrule
- Barrels : 1
Product Data
- UPC : 051712716673
- Country of Origin : China
- Weight : 1
