Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMA-250-R

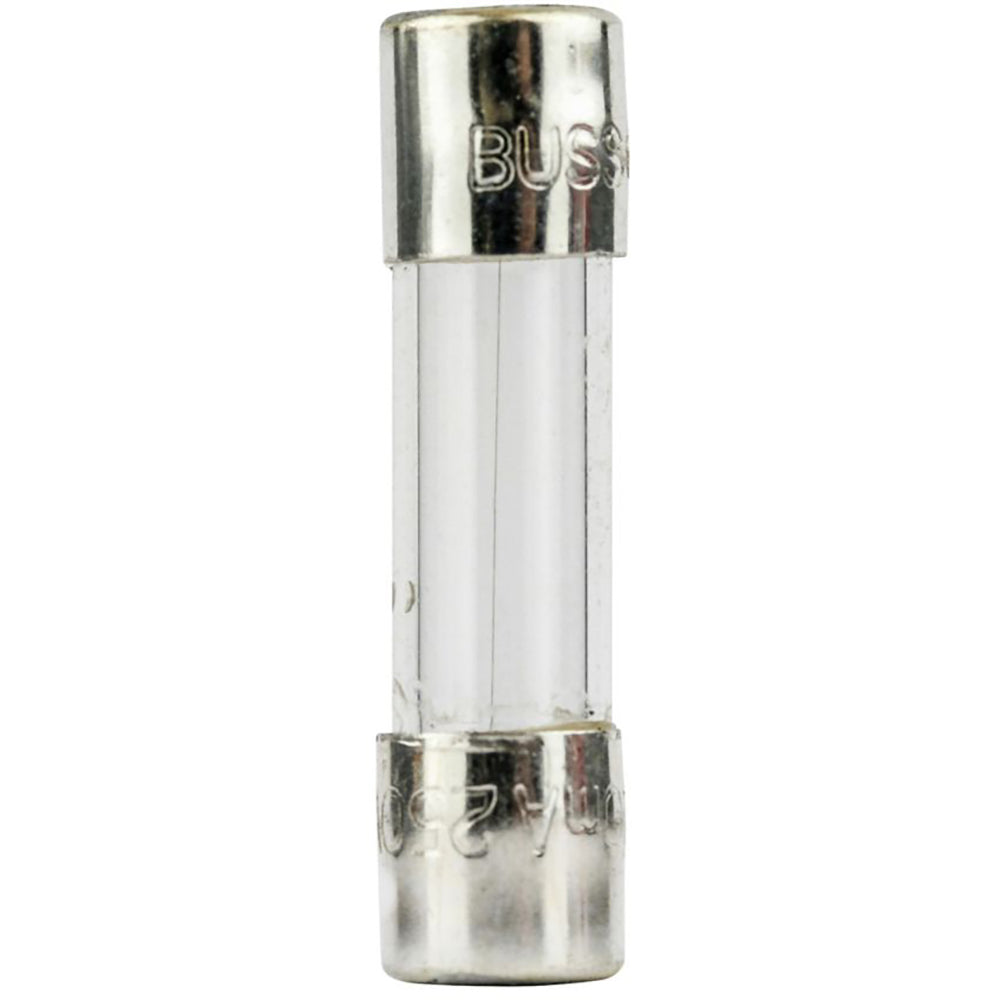

GMA-250-R is an Eaton GMA Series fast-acting glass tube fuse rated at 0.25 amps and 250 volts AC.This fuse features a 5 mm x 20 mm size with a low breaking capacity and is designed for electronic circuit protection.
- Amperage Rating: 0.25A
- Voltage Rating: 250 Vac, 32 Vdc (self certified)
- Fuse Type: Fast-acting
- Physical Size: 5 mm x 20 mm
- Interrupting Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
- Connection: Ferrule end x ferrule end
- Material: Glass tube with silver-plated brass endcaps
- Compliance: CE Marked, RoHS Compliant, UL Listed, CSA Certified
- Response Time: 60 min at 135% rated current, 2 min at 200%
- Non-indicating fuse
Specifications
- Part Number: GMA-250-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMA Series
- Type : GMA
- Voltage : 250
- AIC rating : 35A@250V
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 05171264791
- GTIN : 00051712647915
- Country of Origin : China
- Dimensions : x 20 mm x
- Weight : 1
- Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
