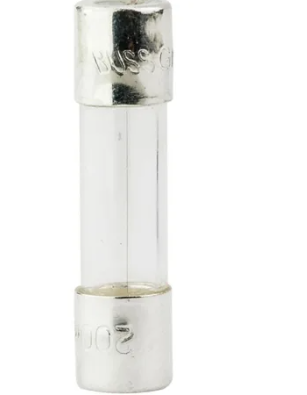

GMA-200-R - Eaton 0.2A 250V Fast-Acting Glass Tube Fuse, 5x20mm, 35A Interrupt, GMA Series, RoHS, CE

GMA-200-R

GMA-200-R is a fast-acting, glass tube fuse from Eaton, designed for reliable protection in electronic circuits.

This 5x20mm miniature fuse features a silver-plated brass endcap construction, non-indicating design, and is suitable for use with ferrule end connections. It is engineered for fast response to overcurrent conditions, ensuring equipment safety in a variety of electronic applications.

Key Specifications
• Amperage: 0.2A (200mA)
• Voltage: 250V AC, 32V DC (self-certified)
• Poles: Single
• Mounting Type: Holder/Clip (ferrule end x ferrule end)
• Interrupt Rating: 35A at 250V AC, 10kA at 125V AC
• Series/Frame: GMA Series
• Trip Unit: Fast-acting (opens in 2 minutes at 200% of rating)
• Certifications: RoHS Compliant, CE Marked, UL Listed (Guide JDYX, File E19180), CSA Certified (Class 1422-01, File 53787), PSE Approved
• Physical Size: 5mm x 20mm
• Construction: Glass tube, silver-plated brass endcap
• Application: Electronic circuits
• Breaking Capacity: Low

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-200-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 200
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264790
• GTIN : 00051712647908
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
