GMA-1A - Eaton Bussmann GMA 1A 250V Fast-Acting Glass Tube Fuse

GMA-1A

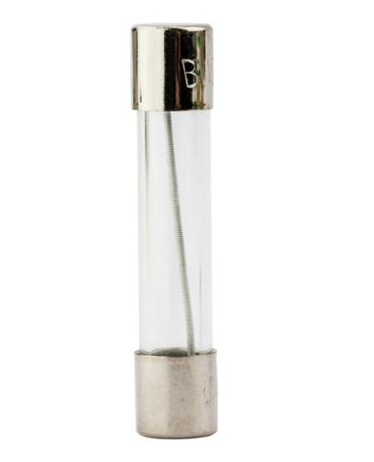

GMA-1A is an Eaton Bussmann series fast-acting glass tube fuse designed for electronic circuit protection with a 1 ampere rating at 250 volts AC. This compact 5mm x 20mm fuse features ferrule end connections and is constructed with a glass tube body and nickel-plated brass endcaps for reliable performance in low-breaking capacity applications. The GMA-1A responds quickly to overcurrent conditions with a 60-minute opening time at 135% of rated current and a 2-minute opening time at 200% of rated current, making it ideal for sensitive electronic equipment requiring fast protection.

• Amperage Rating: 1 A
• Voltage Rating: 250 Vac, 32 Vdc
• Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
• Physical Size: 5mm x 20mm
• Connection Type: Ferrule end x ferrule end
• Fuse Type: Fast-acting, low breaking capacity
• Material: Glass tube with nickel-plated brass endcaps
• Response Time: 60 min at 135%, 2 min at 200%
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Application: Electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-1A
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 1
• AIC rating : 35A@250V
• Connection : Ferrule
• Barrels : 1

Product Data

• UPC : 051712716642
• Country of Origin : China
• Weight : 1
