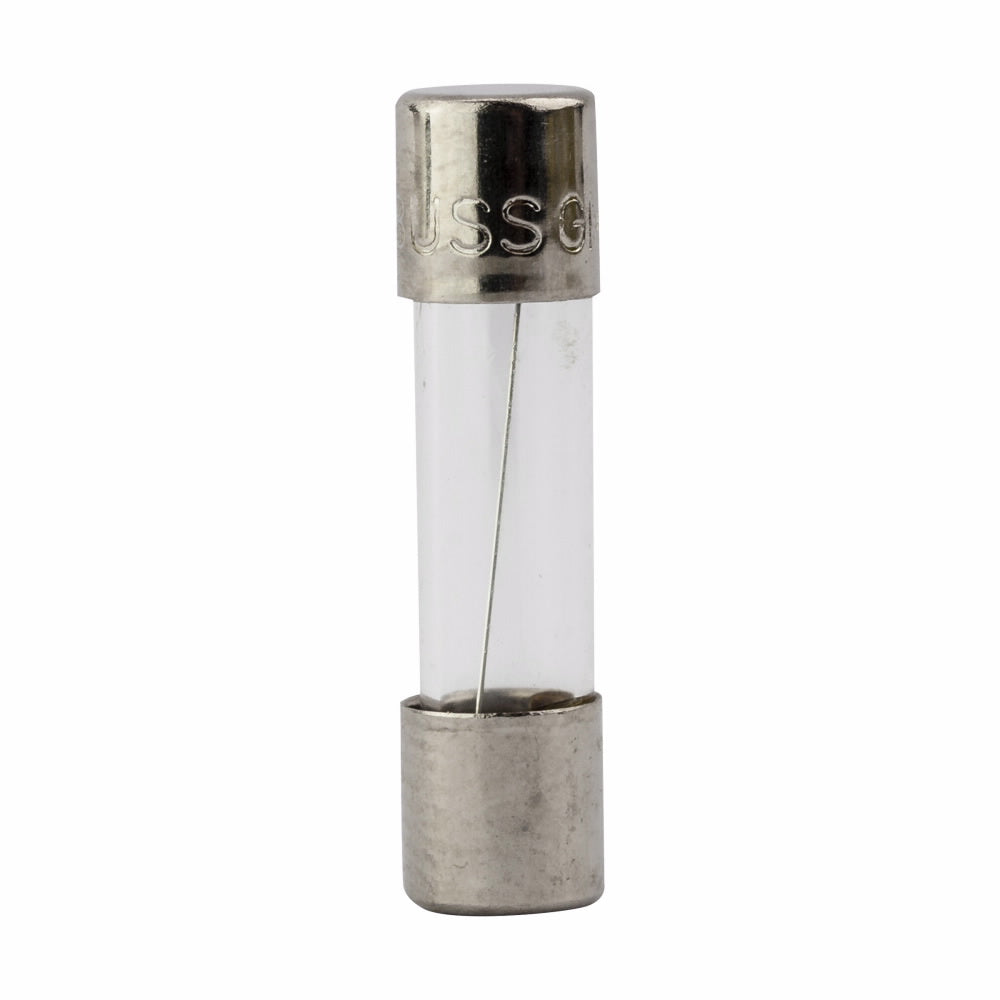

GMA-15-R - Eaton 15A 125V Fast-Acting Glass Tube Fuse 5x20mm 150AIC Interrupt Rating

GMA-15-R

GMA-15-R is a fast-acting glass tube fuse from Eaton designed for electronic circuit protection.This Eaton Bussmann series GMA fuse features a 15 ampere rating, 125 volts AC and 32 volts DC voltage rating, and a 150 amp interrupting rating at 125 VAC. It has a 5 mm x 20 mm size with ferrule end connections and a non-indicating fuse indicator. The fuse is constructed with a glass tube and nickel-plated brass end caps, suitable for electronic applications requiring fast response times.

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC, 32 VDC
• Interrupting Rating: 150 AIC at 125 VAC
• Fuse Type: Fast-acting glass tube
• Physical Size: 5 mm x 20 mm
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Material: Glass tube with nickel-plated brass end caps
• Compliance: CE Marked, RoHS Compliant
• Application: Electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-15-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 125
• Amperage : 15
• AIC rating : 150A@125V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 051712647878
• GTIN : 00051712647878
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 0.0015594
• Certification : CE, PSE Approval, UL 248-14 Guide JDYX2 File E19180
