Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GMA-125-R

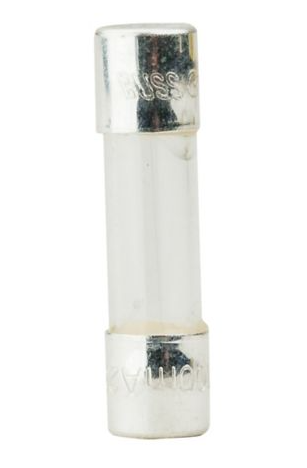

GMA-125-R is an Eaton Bussmann series fast-acting glass tube fuse rated at 0.125 amperes and 250 volts AC.This fuse features a 5 mm x 20 mm size, fast-acting blow characteristic, and a high interrupt rating of 10,000 amperes at 125 VAC and 35 amperes at 250 VAC. It is designed for electronic circuit protection with silver-plated brass endcaps and a glass tube construction.
- Amperage Rating: 0.125A
- Voltage Rating: 250 VAC, 32 VDC (self certified)
- Fuse Size: 5 mm x 20 mm
- Blow Characteristic: Fast-acting
- Interrupt Rating: 10 kA at 125 VAC, 35 AIC at 250 VAC
- Connection: Ferrule end x ferrule end
- Material: Silver-plated brass endcaps, glass tube
- Fuse Indicator: Non-indicating
- Mounting Style: Holder/clip
- Compliance: CE Marked, RoHS Compliant
- Response Time: 60 min at 135%, 2 min at 200%
Specifications
- Part Number: GMA-125-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMA Series
- Type : GMA
- Voltage : 250
- Amperage : 125
- AIC rating : 35A@250V
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 05171264786
- GTIN : 00051712647861
- Country of Origin : China
- Dimensions : x 20 mm x
- Weight : 1
- Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
